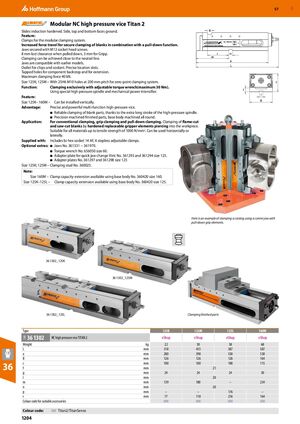

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 1204

GBP 57 ​ Modular NC high pressure vice Titan 2 Slides induction hardened. Side, top and bottom faces ground. Feature: Clamps for the modular clamping system. Increased force travel for secure clamping of blanks in combination with a pull-down function. Jaws secured with M12 socket head screws. 8 mm lost clearance when pulled down, 3 mm for Gripp. Clamping can be achieved close to the neutral line. Jaws are compatible with earlier models. Outlet for chips and coolant. Precise location slots. Tapped holes for component backstop and for extension. Maximum clamping force 40 kN. Size 125K; 125M – With 25H6 M10 holes at 200 mm pitch for zero-point clamping system. Function: Clamping exclusively with adjustable torque wrench(maximum 30 Nm). Using special high pressure spindle and mechanical power intensifier. Feature: Size 125K– 160M – Can be installed vertically. Advantage: Precise and powerful multi-function high-pressure vice. ■ Reliable clamping of blank parts, thanks to the extra long stroke of the high-pressure spindle. ■ Precision machined finished parts, base body machined all round. Application: For conventional clamping, grip clamping and pull-down clamping. Clamping of flame-cut and saw-cut blanks by hardened replaceable gripper elements piercing into the workpiece. Suitable for all materials up to tensile strength of 1000 N/mm2. Can be used horizontally or laterally. Supplied with: Includes bi-hex socket 14 AF, 4 stepless adjustable clamps. Optional extras: ■ Jaws No. 361331 − 361970. ■ Torque wrench No. 656050 size 60. ■ Adapter plate for quick jaw change Xtric No. 361293 and 361294 size 125. ■ Adapter plates No. 361297 and 361298 size 125 Size 125K; 125M – Clamping stud No. 360025. Note: Size 160M – Clamp capacity extension available using base body No. 360420 size 160. Size 125K–125L – Clamp capacity extension available using base body No. 360420 size 125. Here is an example of clamping a casting using a carrier jaw with pull-down grip elements. ​ 36 1302_125K ​ 36 1302_125M ​ 36 1302_125L Clamping finished parts Type 125K 125M 125L 160M 36 1302 34A NC high pressure vice TITAN 2 eShop eShop eShop eShop Weight kg 22 30 38 68 L mm 318 455 587 587 a mm 280 398 530 530 B mm 126 126 126 164 c mm 100 100 100 115 36 f g mm mm 24 24 21 24 30 l mm 20 m mm 139 180 – 234 n mm 20 p mm – – 176 – r mm 77 118 216 164 Colour code for suitable accessories ​ ​ ​ ​ Colour code: Titan2/TitanSense 1204
