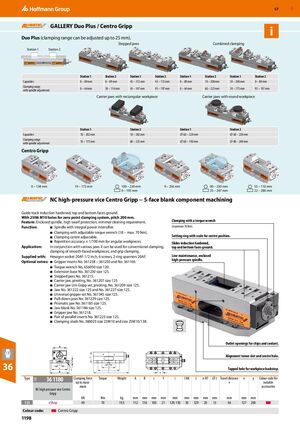

GBP 57 GALLERY Duo Plus / Centro Gripp Duo Plus (clamping range can be adjusted up to 25 mm). Stepped jaws Combined clamping Station 1 Station 2 Station 1 Station 2 Station 1 Station 2 Station 1 Station 2 Station 1 Station 2 Capacities 0 – 89 mm 0 – 89 mm 43 – 172 mm 43 – 172 mm 0 – 89 mm 10 – 200 mm 10 – 200 mm 0 – 89 mm Clamping range 0 – 64 mm 50 – 114 mm 43 – 147 mm 93 – 197 mm 0 – 64 mm 60 – 225 mm 10 – 175 mm 93 – 197 mm with spindle adjustment Carrier jaws with rectangular workpiece Carrier jaws with round workpiece Station 1 Station 2 Station 1 Station 2 Capacities 10 – 202 mm 10 – 202 mm ⌀ 60 – 220 mm ⌀ 60 – 220 mm Clamping range 10 – 175 mm 60 – 225 mm ⌀ 60 – 190 mm ⌀ 80 – 240 mm with spindle adjustment Centro Gripp 0 – 138 mm 19 – 172 mm 100 – 230 mm 9 – 256 mm 80 – 250 mm 55 – 110 mm 0 – 195 mm 25 – 247 mm 22 – 286 mm NC high-pressure vice Centro Gripp − 5-face blank component machining Guide track induction hardened, top and bottom faces ground. With 25H6 M10 holes for zero point clamping system, pitch 200 mm. Feature: Enclosed spindle, high swarf protection, minimal cleaning requirement. Clamping with a torque wrench Function: ■ Spindle with integral power intensifier. (maximum 70 Nm). ■ Clamping with adjustable torque wrench (18 − max. 70 Nm). ■ Clamping centre adjustable. Setting ring with scale for centre position. ■ Repetition accuracy ± 1/100 mm for angular workpieces. Slides induction hardened, Application: In conjunction with various jaws it can be used for conventional clamping, top and bottom faces ground. clamping of smooth-faced workpieces, and grip clamping. Supplied with: Hexagon socket 20AF-1/2 inch, 6 screws, 2 ring spanners 20AF. Low-maintenance, enclosed Optional extras: ■ Gripper inserts No. 361238 – 361250 and No. 361160. high-pressure spindle. ■ Torque wrench No. 656050 size 120. ■ Extension base No. 361230 size 125. ■ Stepped jaws No. 361215. ■ Carrier jaw, pivoting, No. 361207 size 125. ■ Carrier jaw Uni-Gripp set, pivoting, No. 361209 size 125. ■ Jaw No. 361222 size 125 and No. 361227 size 125. ■ Universal gripper set No. 361345 size 125. ■ Pull-down jaws No. 361229 size 125. ■ Prismatic jaw No. 361185 size 125. ■ Jaw blank No. 361186 size 125. ■ Gripper jaw No. 361218. ■ Pair of parallel inserts No. 361223 size 125. ■ Clamping studs No. 360025 size 25M10 and size 25M10/138. Outlet openings for chips and coolant. c Alignment tenon slot and centre hole. 36 n x y L Tapped hole for workpiece backstop. Type 36 1180 Clamping force Torque Weight A B c f i l H8 L n H7 ⌀ t Travel distance x y Colour code for 34A up to maxi- v suitable mum ­accessories NC high pressure vice Centro Gripp kN Nm kg mm mm mm mm mm mm mm mm mm mm mm mm 125 eShop 40 70 19.5 112 154 100 21 129; 130 30 329 20 13 46 127 200 Colour code: Centro Gripp 1198
