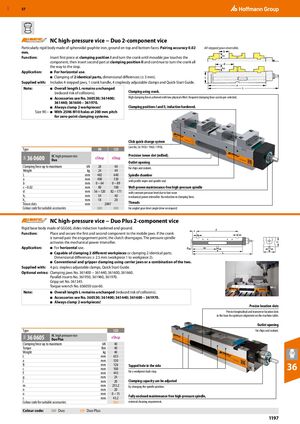

GBP 57 NC high-pressure vice − Duo 2-component vice Particularly rigid body made of spheroidal graphite iron, ground on top and bottom faces. Pairing accuracy 0.02 All stepped jaws reversible. mm. Function: Insert first piece at clamping position I and turn the crank until movable jaw touches the component, then insert second part at clamping position II and continue to turn the crank all the way to the stop. Application: ■ For horizontal use. ■ Clamping of 2 identical parts, dimensional differences (± 3 mm). Supplied with: Includes 4 stepped jaws, 1 crank handle, 4 steplessly adjustable clamps and Quick-Start Guide. Note: Overall length L remains unchanged ■  (reduced risk of collisions). Clamping using crank. ■ Accessories see No. 360530; 361400; High clamping forces achieved with low physical effort. Required clamping force can be pre-selected. 361440; 361600 – 361970. ■ Always clamp 2 workpieces! Clamping positions I and II, induction hardened. Size 90 – ■ With 25H6 M10 holes at 200 mm pitch for zero-point clamping systems. Click quick-change system (see No. 36 1950 / 1960 / 1970). Type 90 125 NC high pressure vice Precision tenon slot (milled). 36 0600 34A eShop eShop Duo Outlet opening Clamping force up to maximum kN 28 40 for chips and coolant. Weight kg 24 49 L mm 482 640 Spindle chamber a mm 400 530 with profile wiper and spindle seal. b mm 0 – 64 0 – 89 c −0.02 mm 80 100 Well-proven maintenance-free high-pressure spindle d mm 56 – 120 82 – 171 with constant pressure level due to low-wear h1 mm 34 40 mechanical power intensifier. No reduction in clamping force. h2 mm 18 20 Tenon slots mm 20H7 Threads Colour code for suitable accessories ​ ​ for angled gear drive (angle drive on request) ​ NC high-pressure vice − Duo Plus 2-component vice Rigid base body made of GGG60, slides induction hardened and ground. Function: Place and secure the first and second component to the mobile jaws. If the crank is turned past the engagement point, the clutch disengages. The pressure spindle activates the mechanical power intensifier. Application: ■ For horizontal use. ■ Capable of clamping 2 different workpieces or clamping 2 identical parts. Dimensional differences ± 2.5 mm (workpiece 1 to workpiece 2). ■ Conventional and gripper clamping using carrier jaws or a combination of the two. Supplied with: 4 pcs. stepless adjustable clamps, Quick Start Guide. Optional extras: Clamping jaws No. 361400 − 361440, 361600, 361660. Parallel inserts No. 361950, 361960, 361970. Gripp set No. 361345. Torque wrench No. 656050 size 60. Note: Overall length L remains unchanged (reduced risk of collisions). ■  ■ Accessories see No. 360530; 361400; 361440; 361600 – 361970. ■ Always clamp 2 workpieces! Precise location slots Precise longitudinal and transverse location slots in the base for optimum alignment on the machine table. Outlet opening Type 125 for chips and coolant. NC high pressure vice 36 0605 34A eShop Duo Plus Clamping force up to maximum kN 40 Torque Nm 40 Weight kg 40 L mm 633 a mm 530 B c F mm mm mm 126 100 443 Tapped hole in the side for a workpiece back-stop. 36 g mm 24 l mm 20 Clamping capacity can be adjusted m mm 255.2 by changing the spindle position. n mm 20 o mm 0 – 15 s mm 43.2 Fully enclosed maintenance-free high-pressure spindle, Colour code for suitable accessories ​ minimal cleaning requirement. Colour code: Duo Duo Plus 1197
