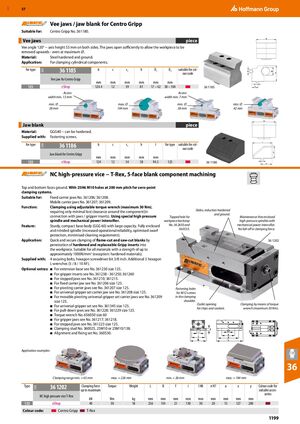

GBP 57 ​ Vee jaws / jaw blank for Centro Gripp Suitable for: Centro Gripp No. 361180. Vee jaws piece Vee angle 120° − axis height 53 mm on both sides. The jaws open sufficiently to allow the workpiece to be removed upwards - even at maximum ⌀. Material: Steel hardened and ground. Application: For clamping cylindrical components. for type 36 1185 b c c1 h D1 D2 suitable for col- 34A our code Vee jaw for Centro Gripp mm mm mm mm mm mm 125 eShop 124.4 12 39 81 17 – 42 38 – 104 ​36 1185 Access Access width min. 13 mm width min. 7 mm min. ⌀ max. ⌀ min. ⌀ min. ⌀ 38 mm 104 mm 38 mm 42 mm Jaw blank piece Material: GGG40 − can be hardened. Supplied with: Fastening screws. for type 36 1186 b c c1 h l for type suitable for col- 34A our code Jaw blank for Centro Gripp mm mm mm mm mm ​ 125 eShop 124 12 54 58 94.5 125 ​36 1186 NC high-pressure vice − T-Rex, 5-face blank component machining Top and bottom faces ground. With 25H6 M10 holes at 200 mm pitch for zero-point clamping systems. Suitable for: Fixed carrier jaws No. 361206; 361208. Mobile carrier jaws No. 361207; 361209. Function: Clamping using adjustable torque wrench (maximum 30 Nm), requiring only minimal lost clearance around the component(in Slides, induction hardened and ground. connection with jaws / gripper inserts). Using special high pressure Tapped hole for Maintenance-free enclosed spindle and mechanical power intensifier. workpiece backstop high-pressure spindles with Feature: Sturdy, compact base body (GGG 60) with large capacity. Fully enclosed No. 36 2650 and mechanical power intensifier. and nitrided spindle (increased operational reliability, optimised swarf 36 0555. No fall-off in clamping force. protection, minimised cleaning requirement). Application: Quick and secure clamping of flame-cut and saw-cut blanks by 36 1202​ penetration of hardened and replaceable Gripp inserts into the workpiece. Suitable for all materials with a strength of up to approximately 1000N/mm2 (exception: hardened materials). Supplied with: 4 securing bolts, hexagon screwdriver bit 3/8 inch. Additional 3 hexagon L-wrenches (5 / 8 / 10 AF). Optional extras: ■ For extension base see No. 361230 size 125. ■ For gripper inserts see No. 361238 - 361250; 361260 ■ For stepped jaws see No. 361210; 361215. ■ For fixed carrier jaw see No. 361206 size 125. ■ For pivoting carrier jaws see No. 361207 size 125. Fastening holes ■ For universal gripper set carrier jaw see No. 361208 size 125. for M12 screws ■ For movable pivoting universal gripper set carrier jaws see No. 361209 in the clamping size 125. shoulder. Outlet opening Clamping by means of torque ■ For universal gripper set see No. 361345 size 125. for chips and coolant. wrench (maximum 30 Nm). ■ For pull-down jaws see No. 361228; 361229 size 125. ■ Torque wrench No. 656050 size 60 ■ For gripper jaws see No. 361217; 361218. ■ For stepped jaws see No. 361223 size 125. ■ Clamping stud No. 360025, 25M10 or 25M10/138. ■ Alignment and fixing set No. 360530. Application examples: 36 Clamping range min. = 65 mm max. = 226 mm min. = 26 mm max. = 184 mm Type 36 1202 Clamping force Torque Weight L B f i l H8 n H7 u x y Colour code for 34A up to maximum suitable acces- sories NC high pressure vice T-Rex kN Nm kg mm mm mm mm mm mm mm mm mm 125 eShop 40 30 18 256 154 21 130 30 20 13 127 200 Colour code: Centro Gripp T-Rex 1199
