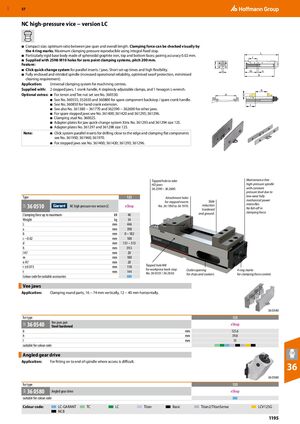

GBP 57 ​NC high-pressure vice − version LC ■ Compact size; optimum ratio between jaw span and overall length. Clamping force can be checked visually by the 4 ring marks. Maximum clamping pressure reproducible using integral fixed stop. L ■ Particularly rigid base body made of spheroidal graphite iron, top and bottom faces; pairing accuracy 0.02 mm. r ■ Supplied with 25H6 M10 holes for zero point clamping systems, pitch 200 mm. Feature: c ■ Click quick-change system for parallel inserts / jaws. Short set-up times and high flexibility. m n l ■ Fully enclosed and nitrided spindle (increased operational reliability, optimised swarf protection, minimised a cleaning requirement). Application: Universal clamping system for machining centres. Supplied with: 2 stepped jaws, 1 crank handle, 4 steplessly adjustable clamps, and 1 hexagon L-wrench. b Optional extras: ■ For tenon and Tee nut set see No. 360530. d h ■ See No. 360555; 352650 and 360800 for spare component backstop / spare crank handle. ■ See No. 360850 for hand crank extension. t ■ See also No. 361380 − 361770 and 362390 − 362600 for other jaws. ■ For spare stepped jaws see No. 361400; 361420 and 361295; 361296. ■ Clamping stud No. 360025. ■ Adapter plates for jaw quick-change system Xtrix No. 361293 and 361294 size 125. ■ Adapter plates No. 361297 and 361298 size 125. Note: ■ Click system parallel inserts for drilling close to the edge and clamping flat components see No. 361950; 361960; 361970. ■ For stepped jaws see No. 361400; 361420; 361295; 361296. Tapped hole to take Maintenance-free HD jaws high-pressure spindle 36 2390 – 36 2600. with constant pressure level due to Type 125 low-wear fully Attachment holes Slide mechanical power for stepped inserts intensifier. 36 0510 NC high pressure vice version LC eShop No. 36 1950 to 36 1970. induction 31F hardened No fall-off in and ground. clamping force. Clamping force up to maximum kN 40 Weight kg 34 L mm 446 a mm 398 b mm 0 – 182 c −0.02 mm 100 d mm 131 – 313 h mm 39.5 l H7 mm 20 m mm 180 n H7 mm 20 Tapped hole M8 r ±0.015 mm 118 for workpiece back-stop Outlet opening 4 ring marks t mm 144 No. 36 0555 / 36 2650. for chips and coolant. for clamping force control. Colour code for suitable accessories ​ Vee jaws ​ Application: Clamping round parts, 16 − 74 mm vertically, 12 − 40 mm horizontally. 36 0540 for type 125 Vee jaws pair 36 0540 eShop 31F Steel hardened b mm 125.6 h mm 39.8 l mm 15 suitable for colour code ​ ​ ​ ​ ​ ​ ​ ​ Angled gear drive ​ Application: For fitting on to end of spindle where access is difficult. 36 36 0580 for type 125 36 0580 34A Angled gear drive eShop suitable for colour code ​ Colour code: LC-GARANT TC LC Titan Basic Titan2/TitanSense LCV125G NC8 1195
