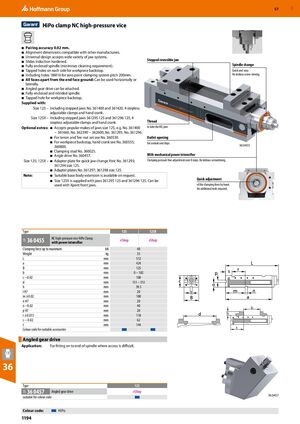

GBP 57 ​ HiPo clamp NC high-pressure vice ■ Pairing accuracy 0.02 mm. ■ Alignment dimensions compatible with other manufacturers. ■ Universal design accepts wide variety of jaw systems. ■ Slides induction hardened. Stepped reversible jaw ■ Fully enclosed spindle (minimises cleaning requirement). Spindle change ■ Tapped holes on each side for workpiece backstop. Quick and easy. ■ Including holes 18M16 for zero point clamping system pitch 200mm. No tedious screw-driving. ■ All faces apart from the end face ground: Can be used horizontally or laterally. ■ Angled gear drive can be attached. ■ Fully enclosed and nitrided spindle. ■ Tapped hole for workpiece backstop. Supplied with: Size 125 – Including stepped jaws No. 361400 and 361420, 4 stepless adjustable clamps and hand crank. Size 125X – Including stepped jaws 361295 125 and 361296 125, 4 stepless adjustable clamps and hand crank. Thread Optional extras: ■ Accepts popular makes of jaws size 125, e.g. No. 361400 to take the HD jaws − 361660, No. 362390 − 362600, No. 361295, No. 361296. ■ For tenon and Tee-nut set see No. 360530. Outlet opening ■ For workpiece backstop, hand crank see No. 360555; for coolant and chips 360800. 36 0455 ■ Clamping stud No. 360025. ■ Angle drive No. 360457. With mechanical power intensifier Size 125; 125X – ■ Adapter plate for quick jaw change Xtric No. 361293; Clamping pressure fine adjustment over 8 steps. No tedious screwdriving. 361294 size 125. ■ Adapter plates No. 361297; 361298 size 125. Note: ■ Suitable base body extension is available on request. ■ Size 125X is supplied with jaws 361295 125 and 361296 125. Can be Quick adjustment used with Xpent front jaws. of the clamping force by hand. No additional tools required. Type 125 125X NC high-pressure vice HiPo Clamp 36 0455 eShop eShop 31F with power intensifier Clamping force up to maximum kN 40 Weight kg 35 L mm 512 a mm 424 B mm 125 b mm 0 – 182 c −0.02 mm 100 d mm 131 – 313 h mm 39.5 l H7 mm 20 m ±0.02 mm 180 n H7 mm 20 o −0.02 mm 40 b p H7 mm 20 r ±0.015 mm 118 h s − 0.02 mm 62 t mm 144 Colour code for suitable accessories ​ ​ t Angled gear drive ​ Application: For fitting on to end of spindle where access is difficult. 36 Type 125 36 0457 Angled gear drive eShop 31F 36 0457 suitable for colour code ​ Colour code: HiPo 1194
