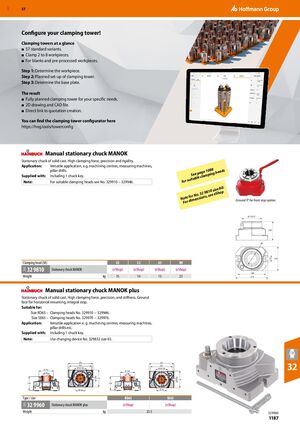

GBP 57 Configure your clamping tower! Clamping towers at a glance ■ 57 standard variants. ■ Clamp 2 to 8 workpieces. ■ For blanks and pre-processed workpieces. Step 1: Determine the workpiece. Step 2: Planned set-up of clamping tower. Step 3: Determine the base plate. The result ■ Fully planned clamping tower for your specific needs. ■ 2D drawing and CAD file. ■ Direct link to quotation creation. You can find the clamping tower configurator here https://hog.tools/towerconfig ​ Manual stationary chuck MANOK Stationary chuck of solid cast. High clamping force, precision and rigidity. Application: Versatile application, e.g. machining centres, measuring machines, pillar drills. 088 eads age 1 h Supplied with: Including 1 chuck key. See p clamping u i t a ble Note: For suitable clamping heads see No. 329910 – 329946. for s : ize 80 3 2 9 810 s Shop o. s, see e for N Note dimension Ground f7 for front stop option. Fo r ⌀ 132 f7 124 SK 16 159 Clamping head (SK) 42 52 65 80 32 9810 33H Stationary chuck MANOK (eShop) (eShop) (eShop) (eShop) 184 Weight kg 15 14 13 23 214 ​ Manual stationary chuck MANOK plus Stationary chuck of solid cast. High clamping force, precision, and stiffness. Ground face for horizontal mounting, integral stop. Suitable for: Size RD65 – Clamping heads No. 329910 − 329946. Size SE65 – Clamping heads No. 329970 − 329976. Application: Versatile application e. g. machining centres, measuring machines, pillar drills etc. Supplied with: Including 1 chuck key. Note: Use changing device No. 329832 size 65. 32 257 257 232 232 LK Ø 126 LK Ø 126 Ø 145 Ø 145 4-65 4-65 17 175 17 175 136 136 RD 65 SE 65 Type / size RD65 SE65 32 9960 33H Stationary chuck MANOK plus (eShop) (eShop) Weight kg 23.5 32 9960 1187
