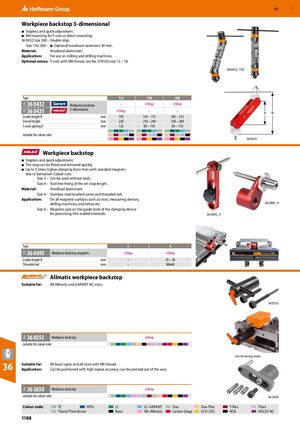

GBP 57 ​Workpiece backstop 3-dimensional ■ Stepless and quick adjustment. ■ M8 mounting for T-nuts or direct mounting. 36 0432 Size 300 – Double stop. Size 150; 300 – ■ Optional maximum extension 30 mm. Material: Anodised aluminium. Application: For use on milling and drilling machines. Optional extras: T-nuts with M8 thread, see No. 370520 size 12 – 18. 36 0432_150 Type 125 150 300 36 0432 – eShop eShop 32E 31H Workpiece backstop 3-dimensional 36 0435 eShop – – A N Usable height N mm 195 145 – 175 285 – 315 Overall height mm 220 210 – 240 350 – 380 S axial spacing A mm 125 80 – 110 80 – 110 ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ suitable for colour code ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ 36 0435 ​ Workpiece backstop ■ Stepless and quick adjustment. ■ The stop can be fitted and removed quickly. ■ Up to 5 times higher clamping force than with standard magnets due to Samarium-Cobalt core. Size 3 – Can be used without tools. Size 4 – Tool-free fixing of the set stop length. Material: Anodised aluminium. Size 4 – Stainless steel knurled screw and threaded rod. Application: On all magnetic surfaces such as vices, measuring devices, drilling machines, and lathes etc. 36 0495_4 Size 4 – Magnetic jack on the guide track of the clamping device for processing thin-walled materials. 36 0495_3 Type 3 4 36 0495 Workpiece backstop, magnetic eShop eShop 32E Usable height N mm – 25 – 38 Threaded rod mm – M6x60 ​ Allmatic workpiece backstop Suitable for: All Allmatic and GARANT NC vices. 36 0555 36 0555 Workpiece backstop eShop 34A suitable for colour code ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ can be swung away 36 Suitable for: Application: All basic types and all vices with M8 thread. Can be positioned with high repeat accuracy; can be pivoted out of the way. 36 2650 Workpiece backstop eShop 34A suitable for colour code ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ 36 2650 Colour code: TC HiPo LC LC-GARANT Duo Duo Plus T-Rex Titan Titan2/TitanSense Basic HD-Allmatic Centro Gripp LCV125G NC8 HOLEX NC 1188
