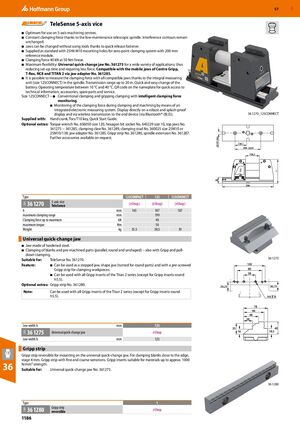

GBP 57 ​ TeleSense 5-axis vice ■ Optimum for use on 5-axis machining centres. ■ Constant clamping force thanks to the low-maintenance telescopic spindle. Interference contours remain unchanged. ■ Jaws can be changed without using tools thanks to quick release fastener. ■ Supplied as standard with 25H6 M10 mounting holes for zero-point clamping system with 200 mm reference module. ■ Clamping force 40 kN at 50 Nm linear. ■ Maximum flexibility: Universal quick-change jaw No. 361275 for a wide variety of applications; thus reducing set-up time and requiring less force. Compatible with the mobile jaws of Centro Gripp, T-Rex, NC8 and TITAN 2 via jaw adapter No. 361285. ■ It is possible to measure the clamping force with all compatible jaws thanks to the integral measuring unit (size 125CONNECT) in the spindle. Transmission range up to 20 m. Quick and easy change of the battery. Operating temperature between 10 °C and 40 °C. QR code on the nameplate for quick access to technical information, accessories, spare parts and service. Size 125CONNECT – ■ Conventional clamping and gripping clamping with intelligent clamping force monitoring. ■ Monitoring of the clamping force during clamping and machining by means of an integrated electronic measuring system. Display directly on a robust and splash-proof display and via wireless transmission to the end device (via Bluetooth® (BLE)). 36 1270_125CONNECT Supplied with: Hand crank, Torx T10 key, Quick Start Guide. Optional extras: Torque wrench No. 656050 size 120, hexagon bit socket No. 643229 size 10, top jaws No. 361275 − 361285, clamping claw No. 361289, clamping stud No. 360025 size 25M10 or 25M10/138; jaw adapter No. 361285, Gripp strip No. 361280, spindle extension No. 361287. Further accessories available on request. h Type 125COMPACT 125 125CONNECT 5-axis vice 36 1270 34H (eShop) (eShop) (eShop) TeleSense h mm 165 187 187 maximum clamping range mm 199 Clamping force up to maximum kN 40 maximum torque Nm 50 Weight kg 35.5 38.5 39 Universal quick-change jaw ​ ■ Jaw made of hardened steel. ■ Clamping of blanks and pre-machined parts (parallel, round and unshaped) – also with Gripp and pull- down clamping. Suitable for: TeleSense No. 361270. 36 1275 Feature: ■ Can be used as a stepped jaw, shape jaw (turned for round parts) and with a pre-screwed Gripp strip for clamping workpieces. ■ Can be used with all Gripp inserts of the Titan 2 series (except for Gripp inserts round h5.5). Optional extras: Gripp strip No. 361280. Note: Can be used with all Gripp inserts of the Titan 2 series (except for Gripp inserts round h5.5). Jaw width b mm 125 36 1275 34H Universal quick-change jaw eShop Jaw width b mm 125 Gripp strip ​ Gripp strip reversible for mounting on the universal quick-change jaw. For clamping blanks close to the edge, stage 4 mm. Gripp strip with fine and coarse serrations. Gripp inserts suitable for materials up to approx. 1000 36 N/mm² strength. Suitable for: Universal quick-change jaw No. 361275. 36 1280 Type 1 Gripp strip 36 1280 34H eShop reversible 1186
