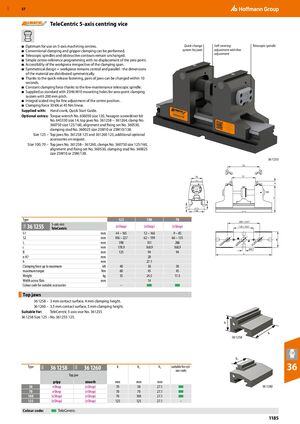

GBP 57 ​ TeleCentric 5-axis centring vice ■ Optimum for use on 5-axis machining centres. Quick-change Self-centring Telescopic spindle ■ Conventional clamping and gripper clamping can be performed. system for jaws adjustment with fine adjustment ■ Telescopic spindles and obstructive contours remain unchanged. ■ Simple centre-reference programming with no displacement of the zero point. ■ Accessibility of the workpiece irrespective of the clamping span. ■ Symmetrical design = workpiece remains central and parallel - the dimensions of the material are distributed symmetrically. ■ Thanks to the quick-release fastening, pairs of jaws can be changed within 10 seconds. ■ Constant clamping force thanks to the low-maintenance telescopic spindle. ■ Supplied as standard with 25H6 M10 mounting holes for zero-point clamping system with 200 mm pitch. ■ Integral scaled ring for fine adjustment of the centre position. ■ Clamping force 30 kN at 45 Nm linear. Supplied with: Hand crank, Quick Start Guide. Optional extras: Torque wrench No. 656050 size 120, hexagon screwdriver bit No. 643330 size 14, top jaws No. 361258 − 361264, clamp No. 360750 size 125/160, alignment and fixing set No. 360530, S2 clamping stud No. 360025 size 25M10 or 25M10/138. Size 125 – Top jaws No. 361258 125 and 361260 125, additional optional S1 accessories on request. Size 100; 70 – Top jaws No. 361258– 361260, clamps No. 360750 size 125/160, h alignment and fixing set No. 360530, clamping stud No. 360025 size 25M10 or 25M/138. SW c 36 1255 S2 70 S1 200 ± 0.01 h 126 ± 0.01 SW c B 6 6 7 5H 0H 2H 54 ø2 ø3 ø1 21 20H7 100 L 70 Type 125 100 70 200 ± 0.01 5-axis vice 36 1255 34A (eShop) (eShop) (eShop) 126 ± 0.01 TeleCentric S1 mm 44 – 165 12 – 166 9 – 85 S2 mm 106 – 227 62 – 199 66 – 135 B 6 6 7 L mm 398 351 286 ø2 5H 0H ø1 2H ø3 21 c mm 178.9 168.9 168.9 20H7 100 B mm 125 94 94 L n H7 mm 20 h mm 27.1 Clamping force up to maximum kN 40 30 30 maximum torque Nm 60 45 45 Weight kg 35 24.5 17.5 Width across flats mm 14 Colour code for suitable accessories – ​ ​ Top jaws ​ 36 1258 – 3 mm contact surface, 4 mm clamping height. 36 1260 – 3.5 mm contact surface, 5 mm clamping height. Suitable for: TeleCentric 5-axis vice No. 361255 36 1258 Size 125 – No. 361255 125. h b 36 1258 b1 Type 36 1258 36 1260 b b1 h1 suitable for col- 36 34A 34A our code Top jaw gripp smooth mm mm mm 38 eShop (eShop) 70 38 27.1 ​ 36 1260 70 eShop (eShop) 70 70 27.1 ​ 100 (eShop) (eShop) 70 100 27.1 ​ 125 (eShop) (eShop) 125 125 27.1 – Colour code: TeleCentric 1185
