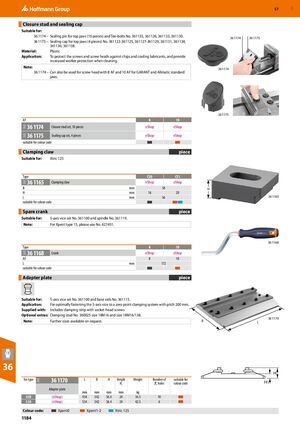

GBP 57 Closure stud and sealing cap ​ Suitable for: 36 1174 – Sealing pin for top jaws (10 pieces) and Tee-bolts No. 361135, 361126, 361133, 361130. 36 1174 36 1175 36 1175 – Sealing cap for top jaws (4 pieces) No. 361123-361125, 361127-361129, 361131, 361134, 361136; 361138. Material: Plastic Application: To protect the screws and screw heads against chips and cooling lubricants, and provide increased worker protection when cleaning. Note: 36 1174 36 1174 – Can also be used for screw head with 8 AF and 10 AF for GARANT and Allmatic standard jaws. 36 1175 AF 8 10 36 1174 Closure stud set, 10 pieces eShop eShop 31O 36 1175 Sealing cap set, 4 pieces eShop eShop 31O suitable for colour code ​ ​ Clamping claw piece Suitable for: Xtric 125 Type CS0 CS1 36 1165 Clamping claw eShop eShop 31O B mm 50 H H mm 16 20 L mm 56 36 1165 suitable for colour code ​ ​ ​ Spare crank piece Suitable for: 5-axis vice set No. 361100 and spindle No. 361119. Note: For Xpent type 1S, please use No. 627451. 36 1168 Type 8 10 36 1168 Crank eShop eShop 31O AF 8 10 L mm 172 suitable for colour code ​ ​ Adapter plate piece Suitable for: 5-axis vice set No. 361100 and base rails No. 361115. Application: For optimally fastening the 5-axis vice to a zero point clamping system with pitch 200 mm. Supplied with: Includes clamping strip with socket-head screws Optional extras: Clamping stud No. 360025 size 18M16 and size 18M16/138. 36 1170 Note: Further sizes available on request. B L 36 H for type 36 1170 L B H Height Weight Number of suitable for 31O H1 ZC holes colour code H1 Adapter plate mm mm mm mm kg ​ ​ 450 (eShop) 454 342 56.4 24 34.5 10 ​ 550 (eShop) 554 342 56.4 24 42.5 6 ​ Colour code: Xpent0 Xpent1-2 Xtric 125 1184
