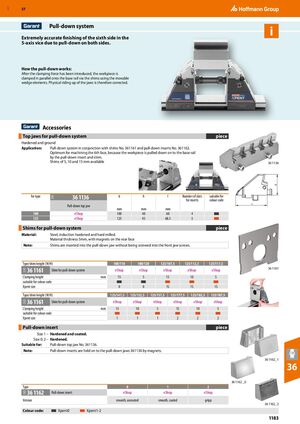

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 1183

GBP 57 Pull-down system Extremely accurate finishing of the sixth side in the 5-axis vice due to pull-down on both sides. How the pull-down works: After the clamping force has been introduced, the workpiece is clamped in parallel onto the base rail via the shims using the movable wedge elements. Physical riding up of the jaws is therefore corrected. ​ Accessories Top jaws for pull-down system piece Hardened and ground Application: Pull-down system in conjunction with shims No. 361161 and pull-down inserts No. 361162. Optimum for machining the 6th face, because the workpiece is pulled down on to the base rail by the pull-down insert and shim. Shims of 5, 10 and 15 mm available 36 1136 H for type 36 1136 b h l Number of slots suitable for 31O for inserts colour code L Pull-down top jaw mm mm mm ​ ​ 100 eShop 100 40 60 4 ​ 125 eShop 125 45 68.5 5 ​ Shims for pull-down system piece Material: Steel, induction hardened and hard milled. Material thickness 5mm, with magnets on the rear face Note: Shims are inserted into the pull-down jaw without being screwed into the front jaw screws. Type/shim height (W/H) 100/110 100/120 125/107,5 125/112,5 125/117,5 36 1161 36 1161 Shim for pull-down system eShop eShop eShop eShop eShop 31O Clamping height mm 15 5 15 10 5 suitable for colour code ​ ​ ​ ​ ​ Xpent size 0 0 1S 1S 1S Type/shim height (W/H) 125/147,5 125/152,5 125/157,5 125/177,5 125/182,5 125/187,5 36 1161 Shim for pull-down system eShop eShop eShop eShop eShop eShop 31O Clamping height mm 15 10 5 15 10 5 suitable for colour code ​ ​ ​ ​ ​ ​ Xpent size 1 1 1 2 2 2 Pull-down insert piece Size 1 – Hardened and coated. Size 0; 2 – Hardened. Suitable for: Pull-down top jaw No. 361136. Note: Pull-down inserts are held on to the pull-down jaws 361136 by magnets. 36 1162_1 36 36 1162 _0 Type 0 1 2 36 1162 Pull-down insert eShop eShop eShop 31O Version smooth, uncoated smooth, coated gripp 36 1162_2 Colour code: Xpent0 Xpent1-2 1183
