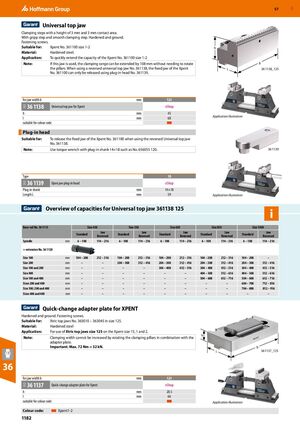

GBP 57 ​ Universal top jaw Clamping steps with a height of 3 mm and 3 mm contact area. With gripp step and smooth clamping step. Hardened and ground. Fastening screws. Suitable for: Xpent No. 361100 size 1-2 h Material: Hardened steel. Application: To quickly extend the capacity of the Xpent No. 361100 size 1-2 Note: If this jaw is used, the clamping range can be extended by 108 mm without needing to rotate b the pillars. When using a reversed universal top jaw No. 361138, the fixed jaw of the Xpent l 36 1138_125 No. 361100 can only be released using plug-in head No. 361139. for jaw width b mm 125 36 1138 Universal top jaw for Xpent eShop 31O h mm 45 Application illustration l mm 68 suitable for colour code ​ Plug-in head ​ Suitable for: To release the fixed jaw of the Xpent No. 361100 when using the reversed Universal top jaw No. 361138. Note: Use torque wrench with plug-in shank 14×18 such as No. 656055 120. 36 1139 Type 10 36 1139 Open jaw plug-in head eShop 31O Plug-in shank mm 14×18 Length L mm 59 Application illustration Overview of capacities for Universal top jaw 361138 125 Base rail No. 36 1115 Size 450 Size 550 Size 650 Size 850 Size 1050 Jaw Jaw Jaw Jaw Jaw Standard Standard Standard Standard Standard Reversed Reversed Reversed Reversed Reversed Spindle mm 6 – 108 114 – 216 6 – 108 114 – 216 6 – 108 114 – 216 6 – 108 114 – 216 6 – 108 114 – 216 + extension No. 36 1120 Size 100 mm 104 – 208 212 – 316 104 – 208 212 – 316 104 – 208 212 – 316 104 – 208 212 – 316 104 – 208 – Size 200 mm – – 204 – 308 312 – 416 204 – 308 312 – 416 204 – 308 312 – 416 204 – 308 312 – 416 Size 100 and 200 mm – – – – 304 – 408 412 – 516 304 – 408 412 – 516 304 – 408 412 – 516 Size 400 mm – – – – – – 404 – 508 512 – 616 404 – 508 512 – 616 Size 100 and 400 mm – – – – – – 504 – 608 612 – 716 504 – 608 612 – 716 Sizes 200 and 400 mm – – – – – – – – 604 – 708 712 – 816 Size 100; 200 and 400 mm – – – – – – – – 704 – 808 812 – 916 Sizes 400 and 400 mm – – – – – – – – – – ​ Quick-change adapter plate for XPENT Hardened and ground. Fastening screws. Suitable for: Xtric top jaws No. 363010 – 363045 in size 125. Material: Hardened steel Application: For use of Xtric top jaws size 125 on the Xpent size 1S, 1 and 2. h Note: Clamping width cannot be increased by rotating the clamping pillars in combination with the adapter plate. Important: Max. 72 Nm = 32 kN. b l 36 1137_125 36 for jaw width b mm 125 36 1137 Quick-change adapter plate for Xpent eShop 31O h mm 20.5 l mm 66 suitable for colour code ​ Application illustration Colour code: Xpent1-2 1182
