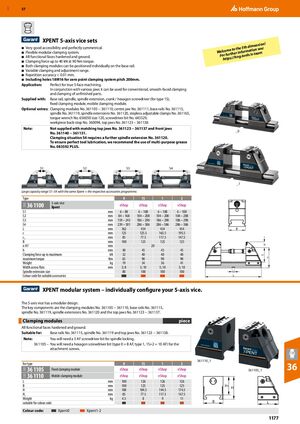

XPENT 5-axis vice sets
ion!
dimens
■ Very good accessibility and perfectly symmetrical.
m e to the 5th ation see:
■ Flexible modular clamping system.
o
Welc rther inform -team
■ All functional faces hardened and ground. For fu /hog.tools/x
https:/
■ Clamping force up to 40 kN at 90 Nm torque.
■ Both clamping modules can be positioned individually on the base rail.
■ Variable clamping and adjustment range.
■ Repetition accuracy < 0.01 mm.
■ Including holes 18M16 for zero point clamping system pitch 200mm.
Application: Perfect for true 5-face machining.
In conjunction with various jaws it can be used for conventional, smooth-faced clamping
and clamping of unfinished parts.
Supplied with: Base rail, spindle, spindle extension, crank / hexagon screwdriver (for type 1S),
fixed clamping module, mobile clamping module.
Optional extras: Clamping modules No. 361105 − 361110, centre jaw No. 361111, base rails No. 361115,
spindle No. 361119, spindle extensions No. 361120, stepless adjustable clamps No. 361165,
torque wrench No. 656050 size 120, screwdriver bit No. 643329,
workpiece back-stop No. 360094, top jaws No. 361123 – 361138.
Note: Not supplied with matching top jaws No. 361123 − 361137 and front jaws
_0
No. 361140 − 361151.
Clamping situation S4 requires a further spindle extension No. 361120.
To ensure perfect tool lubrication, we recommend the use of multi-purpose grease
No. 083592 PLUS.


S1 S2 S3 S4

_1
Large capacity range S1–S4 with the same Xpent + the respective accessories programme.
Type 0 1S 1 2
5-axis vice
36 1100 eShop eShop eShop eShop
31O


Xpent
S1 mm 6 – 88 6 – 108 6 – 108 6 – 108
S2 mm 84 – 168 104 – 208 104 – 208 104 – 208
S3 mm 159 – 243 186 – 290 186 – 290 186 – 290
S4 mm 239 – 301 286 – 386 286 – 386 286 – 386
L mm 362 454 454 454 B
c mm 125 125.5 165.5 195.5
c1 mm 85 77.5 117.5 147.5
B mm 100 125 125 125
h
n H7 mm 20
h mm 40 45 45 45
Clamping force up to maximum kN 32 40 40 40 c1
c
maximum torque Nm 65 90 90 90
Weight kg 19 34 36 41
Width across flats mm 5; 8 5; 10 5; 10 5; 10
Spindle extension size 80 100 100 100 n
Colour code for suitable accessories L

​ XPENT modular system – individually configure your 5-axis vice.
The 5-axis vice has a modular design.
The key components are the clamping modules No. 361105 − 361110, base rails No. 361115,
spindle No. 361119, spindle extensions No. 361120 and the top jaws No. 361123 − 361137.
Clamping modules piece
All functional faces hardened and ground.
Suitable for: Base rails No. 361115, spindle No. 361119 and top jaws No. 361123 − 361138.
Note: You will need a 5 AF screwdriver bit for spindle locking.
36 1105 – You will need a hexagon screwdriver bit (type 0 = 8 AF, type 1, 1S+2 = 10 AF) for the
attachment screws.
36 1110_1
36
for type 0 1S 1 2
36 1105 Fixed clamping module eShop eShop eShop eShop
31O 31O


36 1105_1
36 1110 Mobile clamping module eShop eShop eShop eShop
L mm 100 126 126 126
B mm 100 125 125 125 H1 H
H mm 108 104.5 144.5 174.5
H1 mm 85 77.5 117.5 147.5
Weight kg 4.5 8 9 11
suitable for colour code B L
Colour code: Xpent0 Xpent1-2
