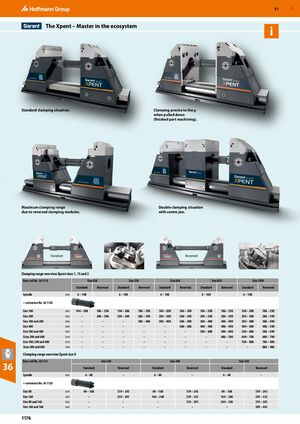

The Xpent – Master in the ecosystem


Standard clamping situation. Clamping precise to the μ
when pulled down
(finished part machining).


Maximum clamping range Double clamping situation
due to reversed clamping modules. with centre jaw.


Standard Reversed


Clamping range overview Xpent sizes 1, 1S and 2
Base rail No. 36 1115 Size 450 Size 550 Size 650 Size 850 Size 1050
Standard Reversed Standard Reversed Standard Reversed Standard Reversed Standard Reversed
Spindle mm 6 – 108 6 – 108 6 – 108 6 – 108 6 – 108
+ extension No. 36 1120
Size 100 mm 104 – 208 186 – 290 104 – 208 186 – 290 104 – 208 186 – 290 104 – 208 186 – 290 104 – 208 186 – 290
Size 200 mm – 286 – 386 204 – 308 286 – 390 204 – 308 286 – 390 204 – 308 286 – 390 204 – 308 286 – 390
Size 100 and 200 mm – – – 386 – 486 304 – 408 386 – 490 304 – 408 386 – 490 304 – 408 386 – 490
Size 400 mm – – – – – 486 – 586 404 – 508 486 – 590 404 – 508 486 – 590
Size 100 and 400 mm – – – – – – 504 – 608 586 – 690 504 – 608 586 – 690
Sizes 200 and 400 mm – – – – – – – 686 – 786 604 – 708 686 – 790
Size 100; 200 and 400 mm – – – – – – – – 704 – 808 786 – 890
Sizes 400 and 400 mm – – – – – – – – – 886 – 986
Clamping range overview Xpent size 0
Base rail No. 361115 Size 360 Size 440 Size 520
36 Standard Reversed Standard Reversed Standard Reversed
Spindle mm 6 – 88 – 6 – 88 – 6 – 88 –
+ extension No. 36 1120
Size 80 mm 84 – 168 159 – 243 84 – 168 159 – 243 84 – 168 159 – 243
Size 160 mm – 239 – 301 164 – 248 239 – 323 164 – 248 239 – 323
Size 80 and 160 mm – – – 319 – 381 244 – 328 319 – 381
Size 160 and 160 mm – – – – – 399 – 461
