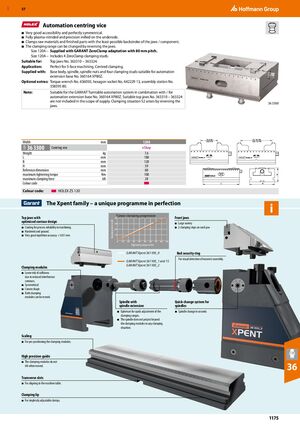

​ Automation centring vice
■ Very good accessibility and perfectly symmetrical.
■ Fully plasma-nitrided and precision milled on the underside.
■ Clamps raw materials and finished parts with the least possible backstroke of the jaws / component.
■ The clamping range can be changed by reversing the jaws.
Size 120A – Supplied with GARANT ZeroClamp adaptation with 80 mm pitch.
Size 120A – Includes 4 ZeroClamp clamping studs.
Suitable for: Top jaws No. 363310 – 363324.
Application: Perfect for 5-face machining. Centred clamping.
Supplied with: Base body, spindle, spindle nuts and four clamping studs suitable for automation
extension base No. 360164 XP80Z.
Optional extras: Torque wrench No. 656050, hexagon socket No. 642229 13, assembly station No.
358595 80.
Note: Suitable for the GARANT Turntable automation system in combination with / for
automation extension base No. 360164 XP80Z. Suitable top jaws No. 363310 – 363324
are not included in the scope of supply. Clamping situation S2 arises by reversing the ​ 36 3300
jaws.


Width mm 120A
36 3300
30N


Centring vice eShop
Weight kg 7.6
L mm 180
B mm 120
H mm 59
Reference dimension mm 80
maximum tightening torque Nm 100
maximum clamping force kN 28
Colour code ​
Colour code: HOLEX ZS 120

The Xpent family – a unique programme in perfection
*Linear clamping progression
Top jaws with 40 Front jaws
optimised contour design
Clamping force in kN


30 ■ Large variety
■ Coating for process reliability in machining. ■ 2 clamping steps on each jaw
20
■ Hardened and ground.
■ Very good repetition accuracy < 0.01 mm. 10

0 10 20 30 40 50 60 70 80 90
Tightening torque in Nm
GARANT Xpent 361100_0 Red security ring
For visual detection of incorrect assembly.
 ARANT Xpent 361100_1 and 1S
G
GARANT Xpent 361100_2
Clamping modules
■ Lower risk of collisions
due to reduced interference
contours.
■ Symmetrical
■ Convex shape
■ Both clamping
modules can be moved.
Spindle with Quick-change system for
spindle extension spindles
■ Optimum for quick adjustment of the ■ Spindle change in seconds
clamping ranges.
■ The spindle does not project beyond
the clamping modules in any clamping
situation.
Scaling
■ For pre-positioning the clamping modules.


High precision guide
■ The clamping modules do not
tilt when moved.
36
Transverse slots
■ For aligning to the machine table.

Clamping lip
■ For steplessly adjustable clamps.
