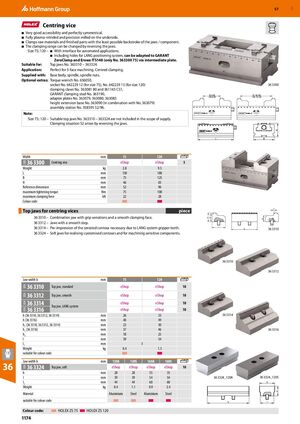

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 1174
Навигация
Каталог Hoffmann Group ручной и измерительный инструмент
Каталог Hoffmann Group режущий и вспомогательный инструмент
Производственная мебель и системы хранения Hoffmann Group 2026
Каталог Hoffmann Group токарный инструмент
Каталог Hoffmann Group запасные части, оснастка и СИЗ
GBP
57
Centring vice
■ Very good accessibility and perfectly symmetrical.
■ Fully plasma-nitrided and precision milled on the underside.
■ Clamps raw materials and finished parts with the least possible backstroke of the jaws / component.
■ The clamping range can be changed by reversing the jaws.
Size 75; 120 – ■ With interface for automated applications.
■ Including holes for LANG positioning system, can be adapted to GARANT
ZeroClamp and Erowa ITS148 (only No. 363300 75) via intermediate plate.
Suitable for: Top jaws No. 363310 – 363324.
Application: Perfect for 5-face machining. Centred clamping.
Supplied with: Base body, spindle, spindle nuts.
Optional extras: Torque wrench No. 656050,
socket No. 642229 12 (for size 75), No. 642229 13 (for size 120) 36 3300
clamping claws No. 363081 80 and 361165 CS1,
GARANT clamping stud No. 363190,
adapter plates No. 363079, 363080, 363085
height extension base No. 363090 (in combination with No. 363079)
assembly station No. 358595 52/96.
Note:
Size 75; 120 – Suitable top jaws No. 363310 – 363324 are not included in the scope of supply.
Clamping situation S2 arises by reversing the jaws.
Width mm 75 120
36 3300
30N
Centring vice eShop eShop 5
Weight kg 2.8 9.5
L mm 130 180
B mm 75 125
H mm 46 65
Reference dimension mm 52 96
maximum tightening torque Nm 75 100
maximum clamping force kN 22 28
Colour code
l1
Top jaws for centring vices piece
36 3310 – Combination jaw with grip serrations and a smooth clamping face. h h
h
36 3312 – Jaws with a smooth step.
36 3314 – Pre-impression of the serrated contour necessary due to LANG system gripper teeth. l
b 36 3310
36 3324 – Soft jaws for realising customised contours and for machining sensitive components.
36 3310
36 3312
Jaw width b mm 75 120
36 3310
30N
Top jaw, standard eShop eShop 10
36 3312
30N 30N 30N
Top jaw, smooth eShop eShop 10
36 3314 Top jaw, LANG system
eShop eShop 10
36 3316 eShop eShop 10
h (36 3310, 36 3312, 36 3314) mm 26 33 36 3314
h (36 3316) mm 40 49
h1 (36 3310, 36 3312, 36 3314) mm 23 30
h1 (36 3316) mm 37 46 36 3316
h2 mm 18 25
l mm 39 54
l1 mm 3
Weight kg 0.4 1.3
suitable for colour code
Jaw width b mm 120A 120S 160A 160S
36 36 3324
30N
Top jaw, soft eShop eShop eShop eShop 10
h mm 28 28 35 35
l mm 39 39 54 54 36 3324_120A 36 3324_120S
l2 mm 44 44 60 60 l2
Weight kg 0.4 1.1 0.9 2.4
h
Material Aluminium Steel Aluminium Steel
suitable for colour code b l
Colour code: HOLEX ZS 75 HOLEX ZS 120
1174
