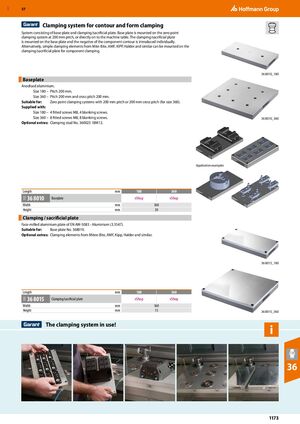

​ Clamping system for contour and form clamping
System consisting of base plate and clamping/sacrificial plate. Base plate is mounted on the zero point
clamping system at 200 mm pitch, or directly on to the machine table. The clamping/sacrificial plate
is mounted on the base plate and the negative of the component contour is introduced individually.
Alternatively, simple clamping elements from Mite-Bite, AMF, KIPP, Halder and similar can be mounted on the
clamping/sacrificial plate for component clamping.


36 8010_180
Baseplate ​
Anodised aluminium.
Size 180 – Pitch 200 mm.
Size 360 – Pitch 200 mm and cross pitch 200 mm.
Suitable for: Zero point clamping systems with 200 mm pitch or 200 mm cross pitch (for size 360).
Supplied with:
Size 180 – 4 fitted screws M8, 4 blanking screws.
Size 360 – 8 fitted screws M8, 8 blanking screws. 36 8010_360
Optional extras: Clamping stud No. 360025 18M12.


Application examples


Length mm 180 360
36 8010 Baseplate eShop eShop
31O


Width mm 360
Height mm 30
Clamping / sacrificial plate ​
Face-milled aluminium plate of EN AW-5083 - Aluminium (3.3547).
Suitable for: Base plate No. 368010.
Optional extras: Clamping elements from Mitee-Bite, AMF, Kipp, Halder and similar.


36 8015_180


Length mm 180 360
36 8015 Clamping/sacrificial plate eShop eShop
31O


Width mm 360
Height mm 15 36 8015_360

Bo The clamping system in use!
