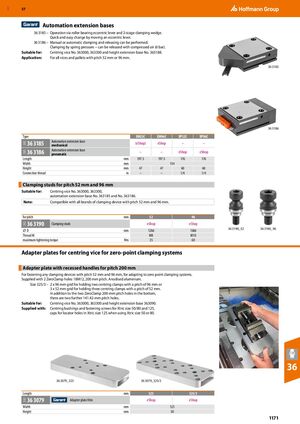

​ Automation extension bases
36 3185 – Operation via roller bearing eccentric lever and 2-stage clamping wedge.
Quick and easy change by moving an eccentric lever.
36 3186 – Manual or automatic clamping and releasing can be performed.
Clamping by spring pressure − can be released with compressed air (6 bar).
Suitable for: Centring vice No. 363000, 363300 and height extension base No. 363188.
Application: For all vices and pallets with pitch 52 mm or 96 mm.
36 3185


36 3186
Type XM52C XM96C XP52C XP96C
Automation extension base
36 3185 (eShop) eShop – –
31O


mechanical
Automation extension base
36 3186 – – eShop eShop
31O


pneumatic
Length mm 197.5 197.5 176 176
Width mm 134
Height mm 47 47 60 60
Connection thread in – – 1/4 1/4
Clamping studs for pitch 52 mm and 96 mm ​
Suitable for: Centring vice No. 363000, 363300,
automation extension base No. 363185 and No. 363186.
Note: Compatible with all brands of clamping device with pitch 52 mm and 96 mm.

for pitch mm 52 96
36 3190 Clamping studs eShop eShop
31O


36 3190_52 36 3190_96
⌀ D mm 12k6 16k6
Thread M M8 M10
maximum tightening torque Nm 35 60

​Adapter plates for centring vice for zero-point clamping systems
Adapter plate with recessed handles for pitch 200 mm ​
For fastening any clamping devices with pitch 52 mm and 96 mm, for adapting to zero point clamping systems.
Supplied with 2 ZeroClamp holes 18M12, 200 mm pitch. Anodised aluminium.
Size 325/3 – 2 x 96 mm grid for holding two centring clamps with a pitch of 96 mm or
3 x 52 mm grid for holding three centring clamps with a pitch of 52 mm.
In addition to the two ZeroClamp 200-mm pitch holes in the bottom,
there are two further 141.42-mm pitch holes.
Suitable for: Centring vice No. 363000, 363300 and height extension base 363090.
Supplied with: Centring bushings and fastening screws for Xtric size 50/80 and 125,
caps for locator holes in Xtric size 125 when using Xtric size 50 or 80.


36
36 3079_325 36 3079_325/3

Length mm 325 325/3
36 3079 Adapter plate Xtric eShop eShop
31O


Width mm 125
Height mm 30
