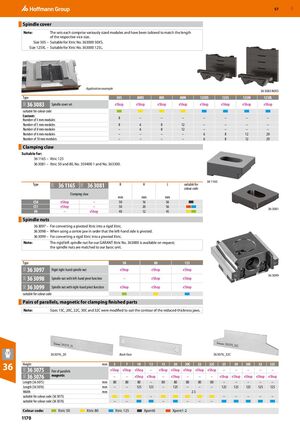

Spindle cover
Note: The sets each comprise variously sized modules and have been tailored to match the length of the respective vice size. Size 50S – Suitable for Xtric No. 363000 50XS. Size 125XL – Suitable for Xtric No. 363000 125L.
Application example 36 3083 80XS
| Type | 50S | 80XS | 80S | 80M | 125XS | 125S | 125M | 125XL | ||
| 36 3083 | Spindle cover set | eShop | eShop | eShop | eShop | eShop | eShop | eShop | eShop |
suitable for colour code
Content:
8 – – – – – – –
Number of 3 mm modules
| Number of 5 mm modules | 8 | 6 | 8 | 12 | – | – | – | – |
| Number of 8 mm modules | – | 6 | 8 | 12 | – | – | – | – |
| Number of 6 mm modules | – | – | – | – | 6 | 8 | 12 | 20 |
| Number of 10 mm modules | – | – | – | – | 6 | 8 | 12 | 20 |
Clamping claw
Suitable for: 36 1165 – Xtric 125 36 3081 – Xtric 50 and 80, No. 359400 1 and No. 363300.
36 1165 36 3081 36 1165
Type B H L suitable for
colour code Clamping claw
| mm | mm | mm | |||
| CS0 | eShop | – | 50 | 16 | 56 |
| CS1 | eShop | – | 50 | 20 | 56 |
36 3081
80 – eShop 40 12 45
Spindle nuts
36 3097 – For converting a pivoted Xtric into a rigid Xtric. 36 3098 – When using a centre jaw in order that the left-hand side is pivoted. 36 3099 – For converting a rigid Xtric into a pivoted Xtric.
Note: The rigid left spindle nut for our GARANT Xtric No. 363000 is available on request; the spindle nuts are matched to our basic unit.
| Type | 50 | 80 | 125 | ||
| 36 3097 | Rigid right-hand spindle nut | eShop | eShop | eShop |
36 3098 36 3099
| Spindle nut with left-hand pivot function | – | eShop | eShop | |
| 36 3099 | Spindle nut with right-hand pivot function | eShop | eShop | eShop |
suitable for colour code
Pairs of parallels, magnetic for clamping finished parts
Note: Sizes 15C, 20C, 22C, 30C and 32C were modified to suit the contour of the reduced-thickness jaws.
36 3076_20 Back face 36 3076_32C
| 36 | Height | mm | 5 | 7 | 10 | 12 | 15 | 20 | 20C | 22 | 22C | 25 | 30 | 30C | 32 | 32C | |
| 36 3075 | eShop eShop eShop | – | eShop eShop eShop eShop eShop | – | – | – | – | – |
Pair of parallels
| magnetic 36 3076 | – | – | eShop eShop | – | eShop | – | – | – | eShop eShop eShop eShop eShop | ||||||
| Length (36 3075) | mm | 80 | 80 | 80 | – | 80 | 80 | 80 | 80 | 80 | – | – | – | – | – |
| Length (36 3076) | mm | – | – | 125 | 125 | – | 125 | – | – | – | 125 | 125 | 125 | 125 | 125 |
| Width | mm | 2.5 | |||||||||||||
| suitable for colour code (36 3075) | – | – | – | – | – | – | |||||||||
| suitable for colour code (36 3076) | – | – | – | – | – | – | |||||||||
| Colour code: | Xtric 80 Xtric 50 | Xtric 125 | Xpent0 | Xpent1-2 |
