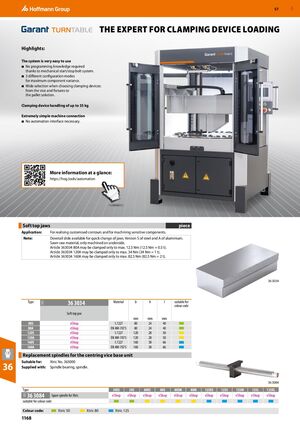

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 1168

THE EXPERT FOR CLAMPING DEVICE LOADING

Highlights: The system is very easy to use

• No programming knowledge required thanks to mechanical start/stop bolt system.
• 3 different configuration modes for maximum component variance.
• Wide selection when choosing clamping devices: from the vice and fixtures to the pallet solution.

Clamping device handling of up to 35 kg Extremely simple machine connection

• No automation interface necessary.

More information at a glance: https://hog.tools/automation

Soft top jaws piece

Application: For realising customised contours and for machining sensitive components.

Note: Dovetail slide available for quick change of jaws. Version S of steel and A of aluminium. Sawn raw material, only machined on underside. Article 363034 80A may be clamped only to max. 12.5 Nm (12.5 Nm = 0.5 t). Article 363034 120A may be clamped only to max. 34 Nm (34 Nm = 1 t). Article 363034 160A may be clamped only to max. 82.5 Nm (82.5 Nm = 2 t).

Type 36 3034 Material b h l

Soft top jaw

Replacement spindles for the centring vice base unit

36 Suitable for: Xtric No. 363000

Supplied with: Spindle bearing, spindle.

36 3034

suitable for colour code

36 3084
