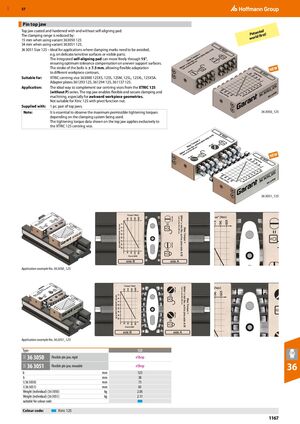

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 1167

Pin top jaw

Top jaw coated and hardened with and without self-aligning pad. ed The clamping range is reduced by: Patent 15 mm when using variant 363050 125 world first! 34 mm when using variant 363051 125. 36 3051 Size 125 – Ideal for applications where clamping marks need to be avoided, e.g. on delicate/sensitive surfaces or visible parts. The integrated self-aligning pad can move freely through 15°, ensuring optimum tolerance compensation on uneven support surfaces. The stroke of the bolts is ± 7.5 mm, allowing flexible adaptation NEW to different workpiece contours.

Suitable for: XTRIC centring vice 363000 125XS, 125S, 125M, 125L, 125XL, 125XSA. Adapter plates 361293 125, 361294 125, 361137 125.

Application: The ideal way to complement our centring vices from the XTRIC 125 (without P) series. The top jaw enables flexible and secure clamping and machining, especially for awkward workpiece geometries. Not suitable for Xtric 125 with pivot function nut.

Supplied with: 1 pc. pair of top jaws.

Note: It is essential to observe the maximum permissible tightening torques 36 3050_125

depending on the clamping system being used. The tightening torque data shown on the top jaw applies exclusively to the XTRIC 125 centring vice.

NEW

36 3051_125

Application example No. 36 2050_125

Application example No. 36 2051_125 Type 125

36 3050 Flexible pin jaw, rigid eShop

36 3051 36

Flexible pin jaw, movable eShop

Colour code: Xtric 125
