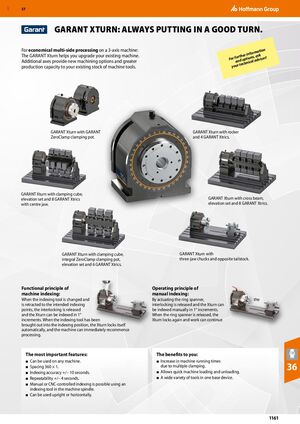

GARANT XTURN: ALWAYS PUTTING IN A GOOD TURN.

For economical multi-side processing on a 3-axis machine: tion The GARANT Xturn helps you upgrade your existing machine. ther informa, ask Additional axes provide new machining options and greater For fur and optionsal adviser! production capacity to your existing stock of machine tools. echnic your t

GARANT Xturn with GARANT GARANT Xturn with rocker ZeroClamp clamping pot. and 4 GARANT Xtrics.

GARANT Xturn with clamping cube, elevation set and 8 GARANT Xtrics GARANT Xturn with cross beam, with centre jaw. elevation set and 8 GARANT Xtrics.

GARANT Xturn with clamping cube, GARANT Xturn with integral ZeroClamp clamping pot, three-jaw chucks and opposite tailstock. elevation set and 6 GARANT Xtrics.

Functional principle of Operating principle of

machine indexing: manual indexing:

When the indexing tool is changed and By actuating the ring spanner, the

is retracted to the intended indexing interlocking is released and the Xturn can points, the interlocking is released be indexed manually in 1° increments. and the Xturn can be indexed in 1° When the ring spanner is released, the increments. When the indexing tool has been Xturn locks again and work can continue brought out into the indexing position, the Xturn locks itself automatically, and the machine can immediately recommence processing.

The most important features: The benefits to you:

■ Can be used on any machine. ■ Increase in machine running times 36

Spacing 360 × 1. due to multiple clamping. ■ Indexing accuracy +/– 10 seconds. ■ Allows quick machine loading and unloading. ■ Repeatability +/– 4 seconds. ■ A wide variety of tools in one base device. ■ Manual or CNC-controlled indexing is possible using an indexing tool in the machine spindle. Can be used upright or horizontally.
