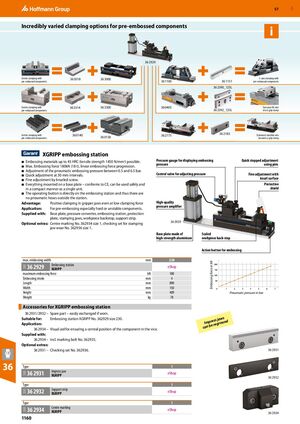

Incredibly varied clamping options for pre-embossed components

36 2929

Centric clamping with 36 3018 36 3000 5-axis clamping with

pre-embossed components 36 1100 36 1151 pre-embossed components

36 2390_125L

Centric clamping with36 331436 330036 0405Turn your NC vice
pre-embossed components36 2392_125Linto a grip clamp
Centric clamping with36 014036 217536 2183Stationary machine vice
pre-embossed components36 0130becomes a grip clamp

XGRIPP embossing station

Embossing materials up to 45 HRC (tensile strength 1450 N/mm ) possible. Pressure gauge for displaying embossing Quick stepped adjustment

  • 2

Max. Embossing force 180kN (18 t), linear embossing force progression. pressure using pins

  • Adjustment of the pneumatic embossing pressure between 0.5 and 6.5 bar.

Quick adjustment at 30 mm intervals. Control valve for adjusting pressure Fine adjustment with

  • knurl surface
  • Fine adjustment by knurled screw.
  • Everything mounted on a base plate – conforms to CE, can be used safely and Protective in a compact manner as a single unit. shield
  • The operating button is directly on the embossing station and thus there are no pneumatic hoses outside the station.
Advantage: Positive clamping in gripper jaws even at low clamping forceHigh-quality
Application: For pre-embossing especially hard or unstable components.pressure amplifier

Supplied with: Base plate, pressure converter, embossing station, protection plate, stamping jaws, workpiece backstop, support strip.

Optional extras: Centre marking No. 362934 size 1, checking set for stamping 36 2929 jaw wear No. 362936 size 1. Base plate made of Scaled high-strength aluminium workpiece back-stop Action button for embossing

max. embossing width mm 230

36 2929 Embossing station XGRIPP eShop

maximum embossing forcekN180
Embossing strokemm4
Lengthmm890
Widthmm150
HeightmmPneumatic pressure in bar 409
Weightkg78

Accessories for XGRIPP embossing station

36 2931/2932 – Spare part – easily exchanged if worn.

Suitable for: Embossing station XGRIPP No. 362929 size 230.

Application: Impress jaws 36 2934 – Visual aid for ensuring a central position of the component in the vice. can be reground

Supplied with: 36 2934 – Incl. marking bolt No. 362935.

Optional extras: 36 2931 – Checking set No. 362936. 36 2931

36

Type 1 36 2931 Impress jaw XGRIPP eShop 36 2932 36 2932 Support strip XGRIPP eShop 36 2934 Centre marking XGRIPP eShop
