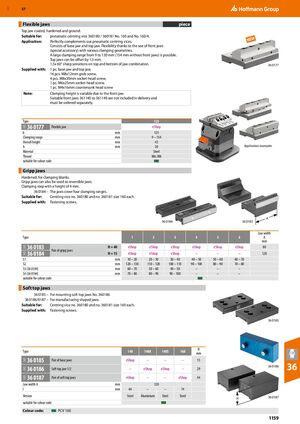

Flexible jaws piece
Top jaw coated, hardened and ground.
Suitable for: pneumatic centring vice 360180 / 360181 No. 160 and No. 160/4.
Application: Perfectly complements our pneumatic centring vices. NEW
Consists of base jaw and top jaw. Flexibility thanks to the use of front jaws (special accessory) with various clamping geometries. A large clamping range from 9 to 130 mm (154 mm without front jaws) is possible. Top jaws can be offset by 1.5 mm. 1.5x 60° sharp serrations on top and bottom of jaw combination. 36 0177
Supplied with: 1 pc. base jaw and top jaw, 16 pcs. M8x12mm grub screw, 4 pcs. M8x30mm socket-head screw, 1 pc. M6x25mm socket-head screw, 1 pc. M4x16mm countersunk head screw
Note: Clamping height is variable due to the front jaw. Suitable front jaws 361140 to 361149 are not included in delivery and must be ordered separately.
Type 125
36 0177 Flexible jaw eShop
| b | mm | 125 | |
| Clamping range | mm | 9 – 154 | |
| Overall height | mm | 43 | |
| h | mm | 30 | Application examples |
Material Steel Thread M6; M8 suitable for colour code
Gripp jaws
Hardened, for clamping blanks. Gripp jaws can also be used as reversible jaws. Clamping step with a height of 4 mm. 36 0184 – The jaws cover four clamping ranges.
Suitable for: Centring vice no. 360180 and no. 360181 size 160 each.
Supplied with: Fastening screws.
A 36 0184 36 0183 Jaw width
Type 1 2 3 4 5 6 A
mm
36 0183 H = 40 eShop eShop eShop eShop eShop eShop 80
36 0184 Pair of gripp jaws
| H = 15 | eShop | eShop | eShop | – | – | – | 120 | |||
| S1 | mm | 10 – 20 | 20 – 30 | 30 – 40 | 40 – 50 | 50 – 60 | 60 – 70 | |||
| S2 | mm | 120 – 130 | 110 – 120 | 100 – 110 | 90 – 100 | 80 – 90 | 70 – 80 | |||
| S3 (36 0184) | mm | 60 – 70 | 50 – 60 | 40 – 50 | – | – | – | |||
| S4 (36 0184) | mm | 70 – 80 | 80 – 90 | 90 – 100 | – | – | – |
suitable for colour code
Soft top jaws
36 0185 – For mounting soft top jaws No. 360186 36 0186/0187 – For manufacturing shaped jaws.
Suitable for: Centring vice no. 360180 and no. 360181 size 160 each.
Supplied with: Fastening screws. 36 0185
H
Type 148 148A 148S 168
mm
36 0185 Pair of base jaws eShop – – – 15 36
36 0186 36 0186
| Soft top jaw 1/2 | – | eShop | eShop | – | 29 | |
| 36 0187 | Pair of soft top jaws | eShop | – | – | eShop | 44 |
Jaw width A mm 120
| l | mm | 64 | – | – | 74 | ||
| Version | Steel | Aluminium | Steel | Steel | 36 0187 |
Colour code: PCV 160
