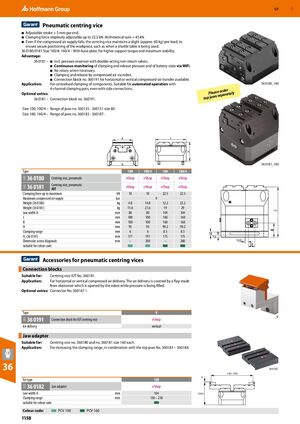

Pneumatic centring vice

  • Adjustable stroke + 5 mm per end.
  • Clamping force steplessly adjustable up to 22.5 kN. Arithmetical sum = 45 kN.
  • Even if the compressed air supply fails, the centring vice maintains a slight (approx. 60 kg) pre-load, to ensure secure positioning of the workpiece, such as when a shuttle table is being used.

36 0180/0181 Size 100/4; 160/4 – With base plate, for higher support torque and maximum stability.

Advantage: 36 0181 – Incl. pressure reservoir with double-acting non-return valves.

  • Continuous monitoring of clamping and release pressure and of battery state via WiFi.
  • No rotary union necessary.
  • Clamping and release by compressed air via robot.
  • Connection block no. 360191 for horizontal or vertical compressed-air transfer available.

Application: For centralised clamping of components. Suitable for automated operation with 36 0180_160

4-channel clamping pots, even with side connections.

Optional extras: Please orderPlease orderatelyately 36 0181 – Connection block no. 360191. top jaws separtop jaws separ Size 100; 100/4 – Range of jaws no. 360135 - 360151 size 80. Size 160; 160/4 – Range of jaws no. 360183 - 360187.

A L

H

B 36 0181_160

Type100100/4160160/4
36 0180Centring vice, pneumaticeShopeShopeShopeShop

36 0181 Centring vice, pneumatic

IOTeShopeShopeShopeShop
Clamping force up to maximumkN101022.522.5
Maximum compressed air supplybar9
Weight (36 0180)kg4.814.812.222.2
Weight (36 0181)kg11.621.61929
Jaw width Amm8080104H1 104
Lmm100100160160
Bmm100100160160
Hmm959599.299.2
Clamping rangemm668.58.5
H (36 0181)mm171191175175

1

Dimension across diagonals mm – 200 – 200

suitable for colour code

Accessories for pneumatic centring vices

Connection blocks

Suitable for: Centring vice IOT No. 360181.

Application: For horizontal or vertical compressed air delivery. The air delivery is covered by a flap made from elastomer which is opened by the robot while pressure is being filled.

Optional extras: Connector No. 360167 1.

Type V

36 0191

Connection block for IOT centring vice eShop Air delivery vertical

Jaw adapter

Suitable for: Centring vice no. 360180 and no. 360181 size 160 each.

Application: For increasing the clamping range, in combination with the top jaws No. 360183 – 360184.

36

for type 160 4

36 0182 Jaw adapter eShop

Jaw width Amm104134,3
Clamping rangemm130 – 250

Colour code: PCV 100 PCV 160

_V

36 0182 130 - 250
