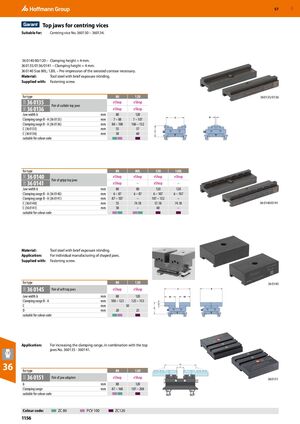

Top jaws for centring vices

Suitable for: Centring vice No. 360130 – 360134.

36 0140 80/120 – Clamping height = 4 mm. 36 0135/0136/0141 – Clamping height = 4 mm. 36 0140 Size 80L; 120L – Pre-impression of the serrated contour necessary.

Material: Tool steel with brief exposure nitriding.

Supplied with: Fastening screw.

for type8012036 0135/0136
36 0135eShopeShop

36 0136 Pair of carbide top jaws eShop eShop

Jaw width bmm80120
Clamping range B - A (36 0135)mm7 – 887 – 107
Clamping range B - A (36 0136)mm88 – 108106 – 132
C (36 0135)mm5557
C (36 0136)mm5860

suitable for colour code

for type8080L120120L
36 0140eShopeShopeShopeShop

36 0141 Pair of gripp top jaws

eShop–eShop–
Jaw width bmm8080120120
Clamping range B - A (36 0140)mm6 – 876 – 876 – 1076 – 107
Clamping range B - A (36 0141)mm87 – 107–107 – 132–
C (36 0140)mm5574.1857.1836 0140/0141 74.18
C (36 0141)mm58–60–

suitable for colour code

Material: Tool steel with brief exposure nitriding.

Application: For individual manufacturing of shaped jaws.

Supplied with: Fastening screw.

for type8036 0145 120
Pair of soft top jaws 36 0145eShopeShop
Jaw width bmm80120
Clamping range B - Amm100 – 123125 – 153
Cmm50
Dmm2025

suitable for colour code

Application: For increasing the clamping range, in combination with the top jaws No. 360135 - 360141.

36

for type80120
36 0151Pair of jaw adapterseShopeShop

36 0151

bmm80120
Clamping rangemm87 – 168107 – 208

Colour code: ZC 80 PCV 100 ZC120
