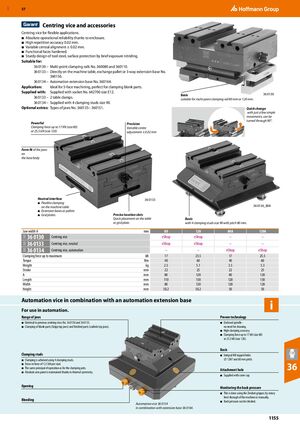

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 1155

Предыдущая страница Следующая страница

Навигация

Centring vice and accessories

Centring vice for flexible applications.

  • Absolute operational reliability thanks to enclosure.
  • High repetition accuracy 0.02 mm.
  • Variable central alignment ± 0.02 mm.
  • Functional faces hardened.
  • Sturdy design of tool steel, surface protection by brief exposure nitriding.

Suitable for: 36 0130 – Multi-point clamping rails No. 360080 and 360110. 36 0133 – Directly on the machine table, exchange pallet or 3-way extension base No. 360156. 36 0134 – Automation extension base No. 360164.

Application: Ideal for 5-face machining, perfect for clamping blank parts.

Supplied with: Supplied with socket No. 642700 size E12. 36 0133 – 2 table clamps. 36 0134 – Supplied with 4 clamping studs size 90.

Optional extras: Types of jaws No. 360135– 360151.

Powerful Precision Clamping force up to 17 KN (size 80) Variable centre or 25.5 kN (size 120) adjustment ± 0.02 mm

Basis 36 0130 suitable for multi-point clamping rail 80 mm or 120 mm. Quick change with just a few simple movements, can be turned through 90°.

Form fit of the jaws on the base body

Neutral interface 36 0133

  • Flexible clamping on the machine table 36 0134_80A
  • Extension bases or pallets
  • Grid plates Precise location slots

Quick placement on the table Basis or grid plate. with 4 clamping studs size 90 with pitch 80 mm.

Jaw width Amm8012080A120A
36 0130Centring viceeShopeShop––
36 0133Centring vice, neutraleShopeShop––
36 0134Centring vice, automation––eShopeShop
Clamping force up to maximumkN1725.51725.5
TorqueNm40604060
Weightkg2.55.13.55.3
Strokemm22252225
Amm8012080120
Lengthmm110130120130
Widthmm80120120120
Heightmm50.250.25050

Automation vice in combination with an automation extension base

For use in automation. Range of jaws Proven technology

  • Identical to previous centring vices No. 36 0130 and 36 0133.
  • Enclosed spindle -
  • Clamping of blank parts (Gripp top jaws) and finished parts (carbide top jaws). no need for cleaning.
  • High clamping accuracy.
  • Clamping force up to 17 kN (size 80) or 25.5 kN (size 120).

Basis Clamping studs Integral M8 tapped holes Clamping is achieved using 4 clamping studs. ⌀ 12H7 and 80 mm pitch.

  • 36
  • Draw-in force of 12.5 kN per stud.
  • The same principal of operation as for the clamping pots. Attachment hole
  • Absolute zero point is maintained thanks to thermal symmetry.
  • Supplied with cover cap.

Opening Monitoring the back pressure

  • This is done using the Zerobot gripper, by rotary feed-through of the machine or manually.

Bleeding Back pressure can be checked. Automation vice 36 0134 in combination with extension base 36 0164.
