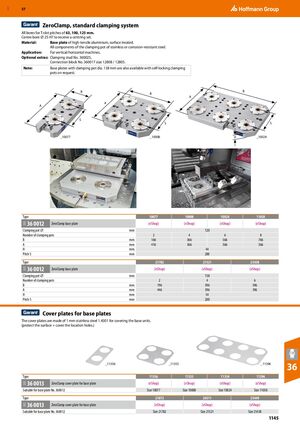

ZeroClamp, standard clamping system

All bores for T-slot pitches of 63, 100, 125 mm. Centre bore ⌀ 25 H7 to receive a centring set.

Material: Base plate of high-tensile aluminium, surface treated. All components of the clamping pot of stainless or corrosion-resistant steel.

Application: For vertical/horizontal machines.

Optional extras: Clamping stud No. 360025, Connection block No. 360017 size 12808 / 12805.

Note: Base plates with clamping pot dia. 138 mm are also available with self-locking clamping pots on request.

B

A A

S

_10077

B B A

S S

_10008 H _10024

Type10077100081002411058
36 0012ZeroClamp base plate(eShop)(eShop)(eShop)(eShop)

Clamping pot ⌀ mm 120

Number of clamping pots2468
Bmm166366566766
Amm416366366366
Hmm44
Pitch Smm200
Type217822152125438
ZeroClamp base plate 36 0012(eShop)(eShop)(eShop)
Clamping pot ⌀mm138
Number of clamping pots246
Bmm196396596
Amm446396396
Hmm54
Pitch Smm200

Cover plates for base plates

The cover plates are made of 1 mm stainless steel 1.4301 for covering the base units. (protect the surface + cover the location holes.)

_11356 _11355 _11396 36

Type11356113551135411396
36 0013ZeroClamp cover plate for base plate(eShop)(eShop)(eShop)(eShop)
Suitable for base plate No. 360012Size 10077Size 10008Size 10024Size 11058
Type218722431125449
36 0013ZeroClamp cover plate for base plate(eShop)(eShop)(eShop)
Suitable for base plate No. 360012Size 21782Size 21521Size 25438
