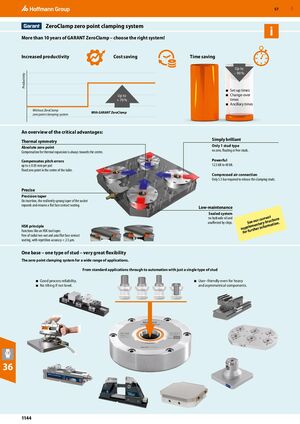

ZeroClamp zero point clamping system

More than 10 years of GARANT ZeroClamp – choose the right system!

Increased productivity Cost saving

Time saving

Up to – 90 %

• Set-up times

Up to Change-over + 70 % times

• Ancillary times

Without ZeroClamp With GARANT ZeroClamp zero point clamping system

An overview of the critical advantages: Thermal symmetry Simply brilliant Absolute zero point Only 1 stud type Compensation for thermal expansion is always towards the centre. no zero, floating or free studs. Compensates pitch errors Powerful up to± 0.05 mm per pot: 12.5 kN to 40 kN. Fixed zero point in the centre of the table. Compressed air connection Only 5.5 bar required to release the clamping studs. Precise Precision taper On insertion, the resiliently sprung taper of the socket expands and ensures a flat face contact seating. Low-maintenance Sealed system no hydraulic oil and ure unaffected by chips. See our currenty brochtion. HSK principle supplementarther informa Functions like an HSK tool taper. for fur Free of radial run-out and axial flat face contact seating, with repetition accuracy < 2.5 µm.

One base – one type of stud – very great flexibility

The zero point clamping system for a wide range of applications. From standard applications through to automation with just a single type of stud

• Good process reliability.
• User−friendly even for heavy
• No tilting if not level. and asymmetrical components.
