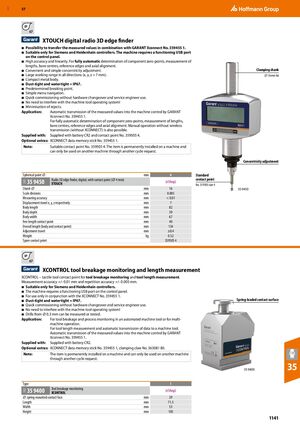

XTOUCH digital radio 3D edge finder

• Possibility to transfer the measured values in combination with GARANT Xconnect No. 359455 1.
• Suitable only for Siemens and Heidenhain controllers. The machine requires a functioning USB port on the control panel.
• High accuracy and linearity. For fully automatic determination of component zero-points, measurement of lengths, bore centres, reference edges and axial alignment. Convenient and simple concentricity adjustment. Clamping shank

• Large working range in all directions (x, y, z = 7 mm). ⌀ 16 mm h6
• Compact metal body.
• Dust-tight and watertight = IP67.
• Predetermined breaking point.
• Simple menu navigation.
• Quick commissioning without hardware changeover and service engineer use.
• No need to interfere with the machine tool operating system!
• Minimisation of rejects.

Application: Automatic transmission of the measured values into the machine control by GARANT Xconnect No. 359455 1. For fully automatic determination of component zero-points, measurement of lengths, bore centres, reference edges and axial alignment. Manual operation without wireless transmission (without XCONNECT) is also possible.

Supplied with: Supplied with battery CR2 and contact point No. 359505 4.

Optional extras: XCONNECT data memory stick No. 359455 1.

Note: Suitable contact point No. 359505 4. The item is permanently installed on a machine and can only be used on another machine through another cycle request. Concentricity adjustment

Spherical point ⌀ mm 4 Standard

35 9450 Radio 3D edge finder, digital, with contact point (⌀ 4 mm) contact point

XTOUCH (eShop) No. 35 9505 size 4

Spare contact point 359505 4

IP 67

XCONTROL tool breakage monitoring and length measurement

XCONTROL – tactile tool contact point for tool breakage monitoring and tool length measurement. Measurement accuracy +/- 0.01 mm and repetition accuracy +/- 0.005 mm.

• Suitable only for Siemens and Heidenhain controllers.
• The machine requires a functioning USB port on the control panel.
• For use only in conjunction with the XCONNECT No. 359455 1. Dust-tight and watertight = IP67.

• Quick commissioning without hardware changeover and service engineer use.
• No need to interfere with the machine tool operating system!
• Drills from ⌀ 0.3 mm can be measured or tested.

Application: For tool breakage and process monitoring in an automated machine tool or for multimachine operation. For tool length measurement and automatic transmission of data to a machine tool. Automatic transmission of the measured values into the machine control by GARANT Xconnect No. 359455 1.

Supplied with: Supplied with battery CR2.

Optional extras: XCONNECT data memory stick No. 359455 1, clamping claw No. 363081 80.

Note: The item is permanently installed on a machine and can only be used on another machine through another cycle request.

35 9400 Tool breakage monitoring XCONTROL (eShop)

Spring-loaded contact surface

35

35 9400
