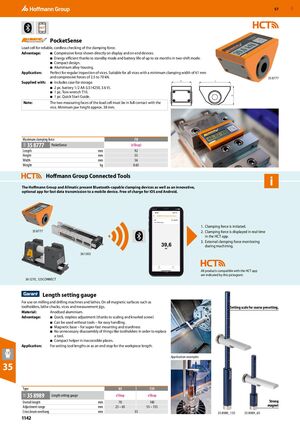

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 1142

PocketSense

Load cell for reliable, cordless checking of the clamping force.

Advantage: Compressive force shown directly on display and on end devices.

• Energy efficient thanks to standby mode and battery life of up to six months in two-shift mode.
• Compact design.
• Aluminium alloy housing.

Application: Perfect for regular inspection of vices. Suitable for all vices with a minimum clamping width of 61 mm and compressive forces of 2.5 to 70 kN. 35 8777

Supplied with: Includes case for storage. B L

• 2 pc. battery 1/2 AA (LS14250, 3.6 V).
• 1 pc. Torx wrench T10.
• 1 pc. Quick Start Guide. H

Note: The two measuring faces of the load cell must be in full contact with the vice. Minimum jaw height approx. 38 mm.

Maximum clamping force 70

35 8777 PocketSense (eShop)

Hoffmann Group Connected Tools

The Hoffmann Group and Allmatic present Bluetooth-capable clamping devices as well as an innovative, optional app for fast data transmission to a mobile device. Free of charge for iOS and Android.

1. Clamping force is initiated. 35 8777 2. Clamping force is displayed in real time in the HCT app. 3. External clamping force monitoring during machining. 36 1303

All products compatible with the HCT app are indicated by this pictogram. 36 1270_125CONNECT

Length setting gauge

For use on milling and drilling machines and lathes. On all magnetic surfaces such as toolholders, lathe chucks, vices and measurement jigs. Setting scale for coarse presetting.

Material: Anodised aluminium.

Advantage: Quick, stepless adjustment (thanks to scaling and knurled screw)

• Can be used without tools – for easy handling.
• Magnetic base – for super-fast mounting and sturdiness
• No unnecessary disassembly of things like toolholders in order to replace a tool.
• Compact helper in inaccessible places.

Application: For setting tool lengths or as an end stop for the workpiece length. Application examples

35
