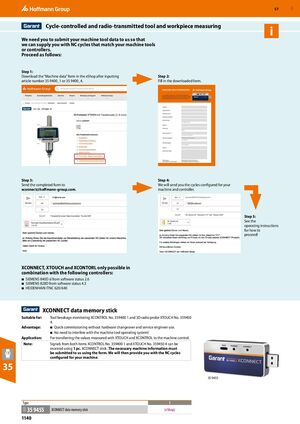

Cycle-controlled and radio-transmitted tool and workpiece measuring

We need you to submit your machine tool data to us so that

we can supply you with NC cycles that match your machine tools

or controllers.

Proceed as follows:

Step 1: Download the “Machine data” form in the eShop after inputting Step 2: article number 35 9400_1 or 35 9400_4. Fill in the downloaded form.

Step 3: Step 4: Send the completed form to We will send you the cycles configured for your xconnect@hoffmann-group.com. machine and controller.

Step 5: See the operating instructions for how to proceed!

XCONNECT, XTOUCH and XCONTORL only possible in

combination with the following controllers:

• SIEMENS 840D sl from software status 2.6
• SIEMENS 828D from software status 4.3
• HEIDENHAIN ITNC 620/640

XCONNECT data memory stick

Suitable for: Tool breakage monitoring XCONTROL No. 359400 1 and 3D radio probe XTOUCH No. 359450 4.

Advantage: Quick commissioning without hardware changeover and service engineer use.

• No need to interfere with the machine tool operating system!

Application: For transferring the values measured with XTOUCH and XCONTROL to the machine control.

Note: Signals from both items XCONTROL No. 359400 1 and XTOUCH No. 359450 4 can be received using 1 pc. XCONNECT stick. The necessary machine information must be submitted to us using the form. We will then provide you with the NC cycles configured for your machine.

35

35 9455

35 9455 XCONNECT data memory stick (eShop)
