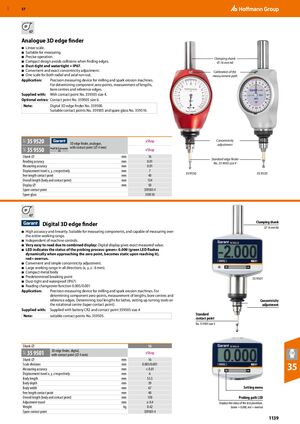

IP

Analogue 3D edge finder

• Linear scale.
• Suitable for measuring.
• Precise operation.

Clamping shank

• Compact design avoids collisions when finding edges. ⌀ 16 mm h6
• Dust-tight and watertight = IP67.
• Convenient and exact concentricity adjustment.

Calibration of the

• One scale for both radial and axial run-out. measurement path

Application: Precision measuring device for milling and spark erosion machines. For determining component zero-points, measurement of lengths, bore centres and reference edges.

Supplied with: With contact point No. 359505 size 4.

Optional extras: Contact point No. 359505 size 6.

Note: Digital 3D edge finder No. 359500. Suitable contact points No. 359505 and spare glass No. 359510.

35 9520 eShop Concentricity

3D edge finder, analogue, adjustment 35 9550 with contact point (⌀ 4 mm) eShop

Shank ⌀ mm 16

Standard edge finder

Reading accuracy mm 0.01

No. 35 9505 size 4

Spare contact point 359505 4 Spare glass 359510

IP 67 Digital 3D edge finder Clamping shank ⌀ 16 mm h6

• High accuracy and linearity. Suitable for measuring components, and capable of measuring over the entire working range.
• Independent of machine controls.
• Very easy to read due to combined display: Digital display gives exact measured value.
• LED indicates the status of the probing process: green= 0.000 (green LED flashes dynamically when approaching the zero point, becomes static upon reaching it), red= overrun.
• Convenient and simple concentricity adjustment.
• Large working range in all directions (x, y, z : 6 mm).
• Compact metal body
• Predetermined breaking point

35 9501

• Dust-tight and waterproof (IP67)
• Reading changeover function 0.005/0.001

Application: Precision measuring device for milling and spark erosion machines. For determining component zero-points, measurement of lengths, bore centres and reference edges. Determining tool lengths for lathes, setting up turning tools on Concentricity the rotational centre (taper contact point). adjustment

Supplied with: Supplied with battery CR2 and contact point 359505 size 4

Note: suitable contact points No. 359505. Standard

contact point No. 35 9505 size 4

Shank ⌀ 16 35 9501 3D edge finder, digital, eShop with contact point (⌀ 4 mm)

Spare contact point 359505 4
