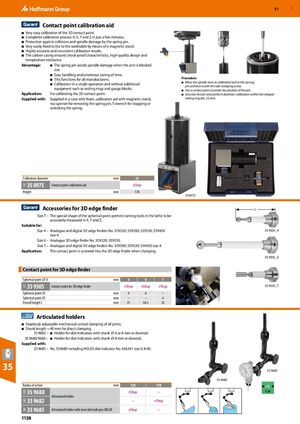

Contact point calibration aid

• Very easy calibration of the 3D contact point.
• Completer calibration process in X, Y and Z in just a few minutes.
• Protection against collisions and spindle damage by the spring pin.
• Very easily fixed to the to the worktable by means of a magnetic stand.
• Highly accurate and consistent calibration results.
• The carbon casing ensures shock-proof characteristics, high-quality design and temperature resistance.

Advantage: The spring pin avoids spindle damage when the unit is blocked out.

• Easy handling and enormous saving of time. This functions for all manufacturers. Procedure:

Calibration in a single operation and without additional Move the spindle nose or calibrated tool to the sprung

• pin and lock it with the side clamping screw.

equipment such as setting rings and gauge blocks.

• Use a contact point to probe the position of the pin.

Application: For calibrating the 3D contact point. Unscrew the pin and perform diameter calibration within the integral

Supplied with: Supplied in a case with foam, calibration aid with magnetic stand, setting ring dia. 25 mm.

nut spinner for removing the spring pin, T-wrench for stopping or unlocking the spring.

Calibration diameter mm 25

35 8975 Contact point calibration aid eShop

Height mm 178

Accessories for 3D edge finder

Size T – The special shape of the spherical point permits turning tools in the lathe to be accurately measured in X, Y and Z.

Suitable for: Size 4 – Analogue and digital 3D edge finders No. 359520; 359500; 359550; 359450 size 4. Size 6 – Analogue 3D edge finder No. 359520; 359550. Size T – Analogue and digital 3D edge finders No. 359500; 359520; 359450 size 4.

Application: The contact point is screwed into the 3D edge finder when changing.

Contact point for 3D edge finder

Articulated holders

• Steplessly adjustable mechanical central clamping of all joints.
• Shank length = 40 mm for direct clamping. 35 9682 – Holder for dial indicators with shank ⌀ 6 or 8 mm or dovetail.

35 9680/9685 – Holder for dial indicators with shank ⌀ 8 mm or dovetail.

Supplied with: 35 9685 – No. 359680 including HOLEX dial indicator No. 436341 size 0.4/40.

35

35 9682 Articulated holder – eShop

35 9685 Articulated holder with lever dial indicator HOLEX eShop –

35 8975

L

35 9505_4

35 9505_6

35 9505_T

35 9685 35 9680 C5 Cal
