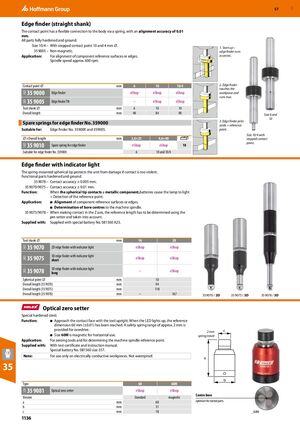

Edge finder (straight shank)

The contact point has a flexible connection to the body via a spring, with an alignment accuracy of 0.01 mm. All parts fully hardened and ground. Size 10/4 – With stepped contact point 10 and 4 mm ⌀. 1. Start up – 35 9005 – Non-magnetic. edge finder runs

Application: For alignment of component reference surfaces or edges. eccentric.

Spindle speed approx. 600 rpm.

Contact point ⌀ mm 6 10 10/4 2. Edge finder

35 9000 touches the

Edge finder eShop eShop eShop workpiece and

35 9005 runs true.

Size 6 and 10 Spare springs for edge finder No. 359000 3. Edge finder jerks aside = reference

Suitable for: Edge finder No. 359000 and 359005. point.

Size 10/4 with

⌀×Overall length mm 2,6×25 4,6×40 stepped contact

35 9010 point.

Edge finder with indicator light

The spring-mounted spherical tip protects the unit from damage if contact is too violent. Functional parts hardened and ground. 35 9078 – Contact accuracy ± 0.005 mm. 35 9070/9075 – Contact accuracy ± 0.01 mm.

Function: When the spherical tip contacts a metallic component,batteries cause the lamp to light = Detection of the reference point.

Application: Alignment of component reference surfaces or edges.

• Determination of bore centres to the machine spindle.

35 9075/9078 – When making contact in the Z axis, the reference length has to be determined using the pre-setter and taken into account.

Supplied with: Supplied with special battery No. 081560 A23.

35 9075 3D edge finder with indicator light

short eShop eShop

35 9078 3D edge finder with indicator light

long – eShop

Overall length (35 9078) mm – 167 2D 3D 3D

35 9070 / 35 9075 / 35 9078 /

Optical zero setter

Special hardened steel.

Function: Approach the contact face with the tool upright. When the LED lights up, the reference dimension 60 mm (±0.01) has been reached. A safety spring range of approx. 2 mm is provided for overdrive. c 2 mm

• Size 60M is magnetic for horizontal use. spring travel

Application: For zeroing tools and for determining the machine spindle reference point.

Supplied with: With test certificate and instruction manual. Special battery No. 081560 size 357.

Note: For use only on electrically conductive workpieces. Not waterproof. a

35

b

Centre bore

Version Standard magnetic
