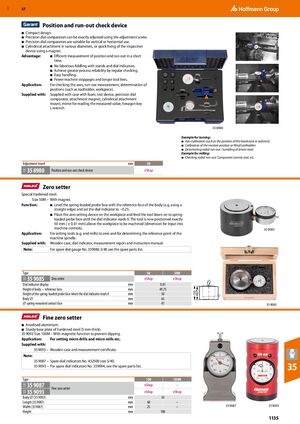

Position and run-out check device

• Compact design.
• Precision dial comparators can be exactly adjusted using the adjustment screw.
• Precision dial comparators are suitable for vertical or horizontal use.
• Cylindrical attachment in various diameters, or quick fixing of the inspection device using a magnet.

Advantage: Efficient measurement of position and run-out in a short time.

• No laborious fiddling with stands and dial indicators.
• Achieve greater process reliability by regular checking.
• Easy handling.
• Fewer machine stoppages and longer tool lives.

Application: For checking the axes, run-out measurement, determination of positions (such as toolholder, workpiece).

Supplied with: Supplied with case with foam, test device, precision dial comparator, attachment magnet, cylindrical attachment mount, mirror for reading the measured value, hexagon key L-wrench.

35 8980

Example for turning:

• Axis calibration (such as the position of the headstock or tailstock)
• Calibration of the revolver position or fitted toolholders
• Determining radial run-out / tumbling of driven tools

Example for milling:

• Checking radial run-out: Component central, tool, etc.

Adjustment travel mm 30

35 8980 Position and run-out check device eShop

Zero setter Special hardened steel. Size 50M – With magnet. Function: Level the spring-loaded probe face with the reference face of the body (e.g. using a

straight edge) and set the dial indicator to −0.25.

• Place the zero setting device on the workpiece and feed the tool down on to springloaded probe face until the dial indicator reads 0. The tool is now positioned exactly 50 mm ( ± 0.01 mm) above the workpiece to be machined (dimension for input into machine controls). 35 9085

Application: For setting tools (e.g. end mills) to zero and for determining the reference point of the machine spindle.

Supplied with: Wooden case, dial indicator, measurement report and instruction manual.

Note: For spare dial gauge No. 359086 3/40 see the spare parts list.

Fine zero setter

• Anodised aluminium.
• Sturdy base plate of hardened steel (5 mm thick).

35 9093 Size 100M – With magnetic function to prevent slipping.

Application: For setting micro drills and micro mills etc.

Supplied with: 35 9093 – Wooden case and measurement certificate.

Note: 35 9087 – Spare dial indicators No. 432500 size 5/40. 35 35 9093 – For spare dial indicators No. 359094, see the spare parts list.
