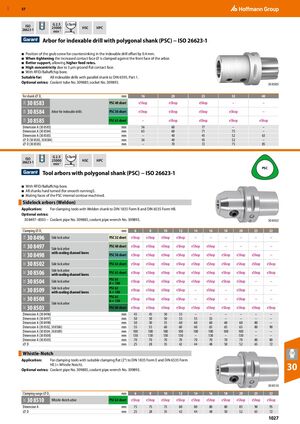

Arbor for indexable drill with polygonal shank (PSC) − ISO 26623-1
- Position of the grub screw for countersinking in the indexable drill offset by 0.4 mm.
- When tightening the increased contact face is clamped against the front face of the arbor.
- Better support, allowing higher feed rates.
- High concentricity due to 3 µm ground flat contact face.
- With RFID/Balluffchip bore.
Suitable for: All indexable drills with parallel shank to DIN 6595, Part 1.
Optional extras: Coolant tube No. 309885; socket No. 309893. 30 8585
for shank D mm 16 20 25 32 40
30 8583s
| PSC 40 short | eShop | eShop | eShop | – | – | |||
| 30 8584 | Arbor for indexable drills PSC 50 short | eShop | eShop | eShop | eShop | – | ||
| 30 8585 | PSC 63 short | – | eShop | eShop | eShop | eShop | ||
| Dimension A (30 8583) | mm | 56 | 60 | 77 | – | – | ||
| Dimension A (30 8584) | mm | 65 | 60 | 71 | 75 | – | ||
| Dimension A (30 8585) | mm | – | 40 | 45 | 52 | 63 |
- D (30 8583, 30 8584) mm 36 40 45 52 –
- D (30 8585) mm – 70 72 75 85
G 2.5 ≤3µm ISO 25000
26623-1 HSC HPC
min-1 PSC
Tool arbors with polygonal shank (PSC) − ISO 26623-1
- With RFID/Balluffchip bore.
- All shanks hard turned (for smooth running!).
- Mating faces of the PSC internal contour machined. Sidelock arbors (Weldon)
Application: For clamping tools with Weldon shank to DIN 1835 Form B and DIN 6535 Form HB.
Optional extras: 30 8497–8503 – Coolant pipe No. 309885, coolant pipe wrench No. 309893. 30 8502
Clamping D mm 6 8 10 12 14 16 18 20 25 32
30 84961
| Side lock arbor | PSC 32 short | eShop | eShop | eShop | eShop | – | – | – | – | – | – | |
| 30 8497 | PSC 40 short | eShop | eShop | eShop | eShop | eShop | eShop | – | – | – | – |
Side lock arbor 30 8498 with cooling channel bores
| PSC 50 short | eShop | eShop | eShop | eShop | eShop | eShop | eShop | eShop | eShop | – | ||
| 30 8502 | Side lock arbor | PSC 63 short | eShop | eShop | eShop | eShop | eShop | eShop | eShop | eShop | eShop | eShop |
| 30 8506 | Side lock arbor | PSC 63 short | ||||||||||
| with cooling channel bores | eShop | eShop | eShop | eShop | eShop | eShop | eShop | eShop | eShop | eShop |
30 8504 PSC 63
| Side lock arbor | A = 100 | eShop | eShop | eShop | eShop | eShop | eShop | eShop | eShop | – | – | |
| 30 8509 | Side lock arbor | PSC 63 | ||||||||||
| with cooling channel bores | A = 100 | eShop | eShop | eShop | eShop | – | eShop | – | eShop | – | – |
30 8508 PSC 63
A = 130 eShop eShop eShop eShop – eShop – eShop – –
Side lock arbor
| PSC 80 short 30 8503 | eShop | eShop | eShop | eShop | eShop | eShop | eShop | eShop | eShop | eShop | |
| Dimension A (30 8496) | mm | 45 | 45 | 50 | 55 | – | – | – | – | – | – |
| Dimension A (30 8497) | mm | 50 | 50 | 50 | 55 | 55 | 55 | – | – | – | – |
| Dimension A (30 8498) | mm | 50 | 50 | 55 | 60 | 60 | 60 | 60 | 60 | 80 | – |
| Dimension A (30 8502, 30 8506) | mm | 55 | 55 | 60 | 60 | 60 | 65 | 65 | 65 | 80 | 90 |
| Dimension A (30 8504, 30 8509) | mm | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | – | – |
| Dimension A (30 8508) | mm | 130 | 130 | 130 | 130 | – | 130 | – | 130 | – | – |
| Dimension A (30 8503) | mm | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 80 | 80 |
- D mm 25 28 35 42 44 48 50 52 65 72
Whistle-Notch
Application: For clamping tools with suitable clamping flat (2°) to DIN 1835 Form E and DIN 6535 Form 30
HE (= Whistle Notch).
Optional extras: Coolant pipe No. 309885, coolant pipe wrench No. 309893.
| Clamping range D | mm | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 25 | 32 | ||
| Whistle-Notch arbor | PSC 63 short | eShop | eShop | eShop | eShop | eShop | eShop | eShop | eShop | eShop | eShop | ||
| Dimension A | mm | 75 | 75 | 75 | 80 | 80 | 80 | 80 | 85 | 90 | 95 |
