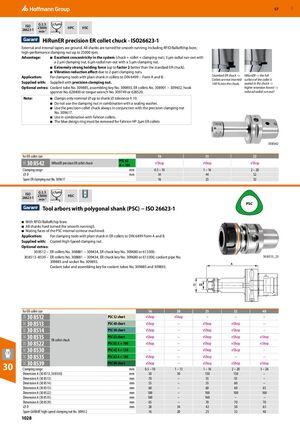

ISO 25000 HPC HSC
HiRunER precision ER collet chuck - ISO26623-1
External and internal tapers are ground. All shanks are turned for smooth running. Including RFID/Balluffchip bore, high-performance clamping nut up to 25000 rpm.
Advantage: Excellent concentricity in the system (chuck + collet + clamping nut), 3 µm radial run-out with a 2 µm clamping nut, 6 µm radial run-out with a 5 µm clamping nut.
- Extremely strong holding force (up to factor 2 better than the standard ER chuck).
- Vibration reduction effect due to 2-part clamping nuts.
Application: For clamping tools with plain shank in collets to DIN 6499 − Form A and B. Standard ER chuck -> HiRunER -> the full
Collets are not inserted surface of the collet is
Supplied with: Supplied with precision clamping nut. 100 % into the chuck. seated in the chuck ->
Optional extras: Coolant tube No. 309885, assembling key No. 309893, ER collets No. 308901 − 309432, hook higher retention forces! -> spanner No. 628400 or torque wrench No. 309749 or 628520. reduced radial run-out!
Note: Clamps only nominal ⌀ up to shank ⌀ tolerance h 10.
- Do not use the clamping nut in combination with a sealing washer.
- Use the precision collet chuck always in conjunction with the precision clamping nut No. 309617.
- Use in combination with Fahrion collets.
- The blue design ring must be removed for Fahrion HP 2µm ER collets
30 8542
for ER collet size 16 25 32
30 8542 PSC 63
| HiRunER precision ER collet chuck | A = 100 | eShop | eShop | eShop | ||
| Clamping range | mm | 0.5 – 10 | 1 – 16 | 2 – 20 | ||
| ⌀ D | mm | 34 | 44 | 52 | ||
| Spare ER clamping nut No. 309617 | 16 | 25 | 32 |
G 2.5 ≤3µm
ISO 25000 HSC
26623-1 min -1 PSC
Tool arbors with polygonal shank (PSC) − ISO 26623-1
- With RFID/Balluffchip bore.
- All shanks hard turned (for smooth running!).
- Mating faces of the PSC internal contour machined.
Application: For clamping tools with plain shank in ER collets to DIN 6499 Form A and B.
Supplied with: Coated High-Speed clamping nut.
Optional extras: 30 8512 – ER collets No. 308881 − 309434, ER chuck key No. 309680 or 613300. 30 8513–8539 – ER collets No. 308881 − 309434, ER chuck key No. 309680 or 613300, coolant pipe No. 30 8513_25 309885 and socket No. 309893. Coolant tube and assembling key for coolant tubes No. 309885 and 309893.
| for ER collet size | 16 | 20 | 25 | 32 | 40 | ||
| 30 8512 | PSC 32 short | eShop | eShop | – | – | – | |
| 30 8513 | PSC 40 short | eShop | – | eShop | eShop | – | |
| 30 8514 | PSC 50 short | eShop | – | eShop | eShop | – | |
| 30 8515 | PSC 63 short | eShop | – | eShop | eShop | eShop |
30 8522 ER collet chuck
| PSC 63 A = 100 | eShop | – | eShop | eShop | eShop | |||
| 30 8530 | PSC 63 A = 130 | – | – | eShop | eShop | – | ||
| 30 8535 | PSC 63 A = 160 | eShop | – | eShop | – | – | ||
| 30 | 30 8539 | PSC 80 short | eShop | – | eShop | eShop | eShop | |
| Clamping range | mm | 0.5 – 10 | 1 – 13 | 1 – 16 | 2 – 20 | 3 – 26 | ||
| Dimension A (30 8512, 30 8530) | mm | 50 | 50 | 130 | 130 | – | ||
| Dimension A (30 8513) | mm | 70 | – | 55 | 55 | – | ||
| Dimension A (30 8514) | mm | 55 | – | 55 | 60 | – | ||
| Dimension A (30 8535) | mm | 160 | – | 160 | – | – | ||
| Spare GARANT high-speed clamping nut No. 309612 | 16 | 20 | 25 | 32 | 40 |
