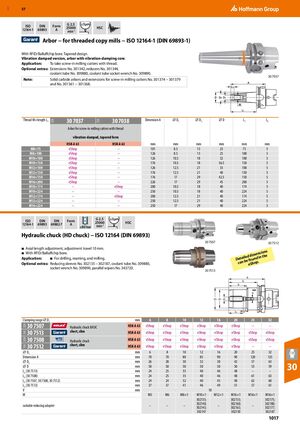

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 1017

ISO DIN Form 25000 HSC

Arbor − for threaded copy mills − ISO 12164-1 (DIN 69893-1)

With RFID/Balluffchip bore. Tapered design. Vibration damped version, arbor with vibration-damping core.

Application: To take screw-in milling cutters with thread.

Optional extras: Extensions No. 301342, reducers No. 301344, coolant tube No. 309880, coolant tube socket wrench No. 309890. 30 7037

Note: Solid carbide arbors and extensions for screw-in milling cutters No. 301374 − 301379 and No. 301361 − 301368.

Arbor for screw-in milling cutters with thread vibration-damped, tapered form

G 2.5 ≤3µm

≤80 bar -1

Hydraulic chuck (HD chuck) − ISO 12164 (DIN 69893)

30 7507 30 7512

• Axial length adjustment, adjustment travel 10 mm.
• With RFID/Balluffchip bore.

Application: For drilling, reaming, and milling. Detailed dimensions

Optional extras: Reducing sleeves No. 302135 – 302187, coolant tube No. 309880, can be found in the . eShop socket wrench No. 309890, parallel wipers No. 343720. 30 7513 A l2 l5 g

d3 d2 d1

l3 V

Clamping range D mm 6 8 10 12 16 20 25 32

30 7507 1

Hydraulic chuck

30 7512 short, slim HSK-A 63 eShop eShop eShop eShop eShop eShop – –

• D mm 6 8 10 12 16 20 25 32 1

Dimension A mm 70 70 80 85 90 90 120 125

• D mm 26 28 30 32 38 42 57 63 30 2
• D mm 50 50 50 50 50 50 53 59

L (30 7513) mm 24 25 35 40 46 48 – –

2

L (30 7508) mm 24 25 35 40 46 48 61 63

2

L (30 7507, 30 7508, 30 7512) mm 24 24 32 40 45 48 62 60

3
