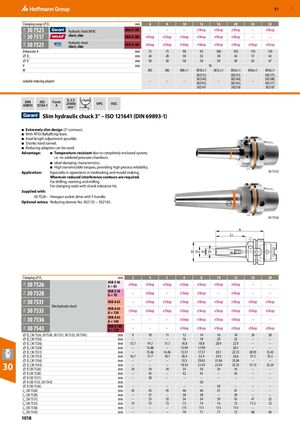

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 1018

• D mm 26 28 30 32 38 42 57 63 2
• D mm 50 50 50 50 50 50 63 67

V mm 10

G 2.5 ≤3µm

-1

Slim hydraulic chuck 3° – ISO 121641 (DIN 69893-1)

• Extremely slim design (3°-contour).
• With RFID/Balluffchip bore.
• Axial length adjustment possible.
• Shanks hard turned.
• Reducing adapters can be used.

Advantage: Temperature-resistant due to completely enclosed system, i.e. no soldered pressure chambers.

• Ideal damping characteristics.
• High transmissible torques, providing high process reliability.

Application: Especially in operations in toolmaking and mould making. 30 7533

Wherever reduced interference contours are required. For drilling, reaming and milling. For clamping tools with shank tolerance h6.

Supplied with: 30 7528 – Hexagon socket drive with T-handle.

Optional extras: Reducing sleeves No. 302135 − 302165.

30 7536

A L2

D D3 D2 D1

Clamping D mm 3 4 5 6 8 10 12 16 20

30 75261 HSK-E 40

A = 85 eShop eShop eShop eShop eShop eShop eShop – –

30 7528 HSK-E 50

Slim hydraulic chuck 30 7533 HSK-A 63

A = 120 eShop eShop eShop eShop eShop eShop eShop eShop eShop

30 7536 HSK-A 63

A = 160 – – – eShop eShop eShop eShop – –

30 7543 HSK-A 100

A = 120 – – – eShop eShop eShop eShop eShop eShop

• D (30 7526, 30 7528, 30 7531, 30 7533, 30 7543) mm 9 10 11 12 14 16 18 24 28 2
• D (30 7536) mm – – – 16 18 20 22 – –
• D2 (30 7526) mm 13.7 14.7 15.7 16.8 18.8 20.9 22.9 – –
• D3 (30 7528) mm – 13.88 – 15.99 17.99 – 20.1 – – 3
• D (30 7531) mm – 13.46 14.46 15.57 17.57 20.1 22.72 28.93 33.45 3
• D (30 7533) mm 16.7 17.7 18.7 20.4 22.4 24.5 26.6 31.5 35.5
• D3 (30 7536) mm – – – 33.5 29.63 31.84 33.84 – –

30 D3 (30 7543) mm – – – 19.34 21.45 23.45 25.55 31.13 35.24

3

• D (30 7526) mm 34 34 34 34 34 34 34 – –
• D (30 7528) mm – 42 – 42 42 – 42 – –
• D (30 7531) mm – 50 – – – – – – –
• D (30 7533, 30 7543) mm 50
• D (30 7536) mm – – – – – 50 – – –
