ISO DIN Form 25000 HSC

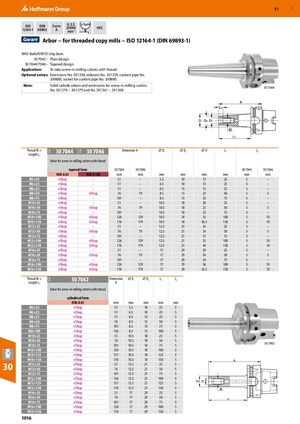

Arbor − for threaded copy mills − ISO 12164-1 (DIN 69893-1)

With Balluff/RFID chip bore. 30 7042 – Plain design. 30 7044/7046 – Tapered design.

Application: To take screw-in milling cutters with thread.

Optional extras: Extensions No. 301358, reducers No. 301359, coolant pipe No. 309880, socket for coolant pipe No. 309890.

Note: Solid carbide arbors and extensions for screw-in milling cutters No. 301374 − 301379 and No. 301361 − 301368. 30 7044

Thread M ×	30 7044	30 7046	Dimension A	⌀ D		⌀ D		⌀ D	L	L
Length L					1		2		1	2

1 Arbor for screw-in milling cutters with thread

		tapered form	30 7044	30 7046						30 7044	30 7046
	HSK-A 63	HSK-A 100	mm	mm		mm	mm	mm	mm	mm	mm
M5×25	eShop	–	51		–	5.5	10	13	25	5	–
M6×25	eShop	–	51		–	6.5	10	13	25	5	–
M8×25	eShop	–	51		–	8.5	13	15	25	5	–
M8×50	eShop	eShop	76		79	8.5	13	23	50	5	5
M8×75	eShop	–	101		–	8.5	13	23	75	5	–
M10×25	eShop	–	51		–	10.5	18	20	25	5	–
M10×50	eShop	eShop	76		79	10.5	18	23	50	5	5
M10×75	eShop	–	101		–	10.5	18	23	75	5	–
M10×100	eShop	eShop	126	129		10.5	18	32	100	5	10
M10×150	eShop	eShop	176	179		10.5	18	36.5	150	5	10
M12×25	eShop	–	51		–	12.5	21	24	25	5	–
M12×50	eShop	eShop	76		79	12.5	21	24	50	5	5
M12×75	eShop	–	101		–	12.5	21	31	75	5	–
M12×100	eShop	eShop	126	129		12.5	21	33	100	5	10
M12×150	eShop	eShop	176	179		12.5	21	40	150	5	10
M16×25	eShop	–	51		–	17	29	29	25	5	–
M16×50	eShop	eShop	76		79	17	29	34	50	5	5
M16×75	eShop	–	101		–	17	29	34	75	5	–
M16×100	eShop	eShop	126	129		17	29	36	100	5	10
M16×150	eShop	eShop	176	179		17	29	42.5	150	5	10
Thread M ×		30 7042	Dimension	⌀ D	⌀ D	L	L
Length L			A	1		2 1	2

1 Arbor for screw-in milling cutters with thread cylindrical form

	HSK-A 63	mm	mm	mm	mm	mm
M5×25	eShop	51	5.5	10	25	5
M6×25	eShop	51	6.5	10	25	5
M8×25	eShop	51	8.5	13	25	5
M8×50	eShop	76	8.5	13	50	5
M8×75	eShop	101	8.5	13	75	5
M8×100	eShop	126	8.5	13	100	5
M10×25	eShop	51	10.5	18	25	5
M10×50	eShop	76	10.5	18	50	5
M10×75	eShop	101	10.5	18	75	30 7042 5
M10×100	eShop	126	10.5	18	100	5
M10×125	eShop	151	10.5	18	125	5
30 M10×150	eShop	176	10.5	18	150	5
M12×25	eShop	51	12.5	21	25	5
M12×50	eShop	76	12.5	21	50	5
M12×75	eShop	101	12.5	21	75	5
M12×100	eShop	126	12.5	21	100	5
M12×125	eShop	151	12.5	21	125	5
M12×150	eShop	176	12.5	21	150	5
M16×25	eShop	51	17	29	25	5
M16×50	eShop	76	17	29	50	5
M16×75	eShop	101	17	29	75	5
M16×100	eShop	126	17	29	100	5
M16×150	eShop	176	17	29	150	5
