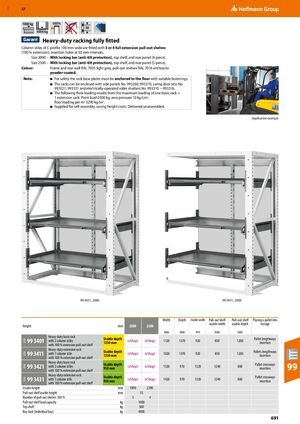

GBP 57 1000 kg 100% 50 4000 kg Heavy-duty racking fully fitted Column stiles of C-profile 100 mm wide are fitted with 3 or 4 full extension pull-out shelves (100 % extension). Insertion holes at 50 mm intervals. Size 2000 – With locking bar (anti-tilt protection), top shelf, and rear panel (4-piece). Size 2500 – With locking bar (anti-tilt protection), top shelf, and rear panel (5-piece). Colour: Frame and rear wall RAL 7035 light grey, pull-out shelves RAL 7016 anthracite powder-coated. Note: ■ For safety the rack base plates must be anchored to the floor with suitable fastenings. ■ The racks can be enclosed with side panels No. 993260; 993270, swing door sets No. 993321; 993331 and electrically-operated roller shutters No. 993310 − 993316. ■ The following floor loading results from the maximum loading of one basic rack + 1 extension rack: Point load 2500 kg, area pressure 10 kg/cm2, floor loading per m2 3290 kg/m2. ■ Supplied for self-assembly, saving freight costs. Delivered unassembled. Application example 99 3421_2000 99 3431_2000 Width Depth Usable width Pull-out shelf Pull-out shelf Placing a pallet into usable width usable depth storage Height mm 2000 2500 mm mm mm mm mm Heavy-duty basic rack Usable depth Pallet lengthways 99 3401 91W with 2 column stiles (eShop) (eShop) 1120 1370 920 830 1200 1350 mm insertion with 100 % extension pull-out shelf Heavy-duty extension rack Usable depth Pallets lengthways 99 3411 91W with 1 column stile (eShop) (eShop) 1020 1370 920 830 1200 1350 mm insertion with 100 % extension pull-out shelf Heavy-duty basic rack 99 3421 Usable depth Pallet crossways 99 91W with 2 column stiles (eShop) (eShop) 1520 970 1320 1240 800 950 mm insertion with 100 % extension pull-out shelf Heavy-duty extension rack Usable depth Pallet crossways 99 3431 91W with 1 column stile (eShop) (eShop) 1420 970 1320 1240 800 950 mm insertion with 100 % extension pull-out shelf Usable height mm 1890 2390 ​ ​ ​ ​ ​ ​ Pull-out shelf usable height mm 35 ​ ​ ​ ​ ​ ​ Number of pull-out shelves 100 % 3 4 ​ ​ ​ ​ ​ ​ Pull-out shelf load capacity kg 1000 ​ ​ ​ ​ ​ ​ Top shelf kg 500 ​ ​ ​ ​ ​ ​ Bay load (individual bay) kg 4000 ​ ​ ​ ​ ​ ​ 691
