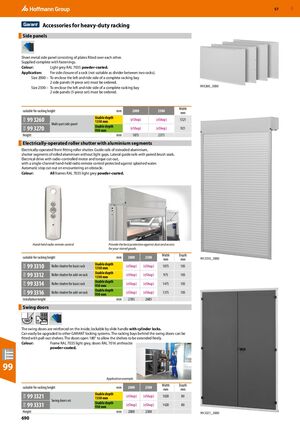

Производственная мебель и системы хранения Hoffmann Group 2026 - страница 690

GBP 57 ​ Accessories for heavy-duty racking Side panels ​ Sheet metal side panel consisting of plates fitted over each other. Supplied complete with fastenings. Colour: Light grey RAL 7035 powder-coated. Application: For side closure of a rack (not suitable as divider between two racks). Size 2000 – To enclose the left and ride side of a complete racking bay 2 side panels (4-piece set) must be ordered. Size 2500 – To enclose the left and ride side of a complete racking bay 993260_2000 2 side panels (5-piece set) must be ordered. Width suitable for racking height mm 2000 2500 mm Usable depth 99 3260 91W 1350 mm (eShop) (eShop) 1321 Multi-part side panel Usable depth 99 3270 91W (eShop) (eShop) 921 950 mm Height mm 1875 2375 ​ Electrically-operated roller shutter with aluminium segments ​ Electrically-operated front-fitting roller shutter. Guide rails of extruded aluminium, shutter segments of rolled aluminium without light gaps. Lateral guide rails with paired brush seals. Electrical drive with radio-controlled motor and torque cut-out, with a single-channel hand-held radio remote control protected against splashed water. Automatic stop cut-out on encountering an obstacle. Colour: All frames RAL 7035 light grey powder-coated. Hand-held radio remote control Provide the best protection against dust and access for your stored goods. Width Depth suitable for racking height mm 2000 2500 99 3310_2000 mm mm Usable depth 99 3310 91W Roller shutter for basic rack (eShop) (eShop) 1075 105 1350 mm Usable depth 99 3312 91W Roller shutter for add-on rack (eShop) (eShop) 975 105 1350 mm Usable depth 99 3314 91W Roller shutter for basic rack (eShop) (eShop) 1475 105 950 mm Usable depth 99 3316 91W Roller shutter for add-on rack (eShop) (eShop) 1375 105 950 mm Installation height mm 2185 2685 ​ ​ Swing doors ​ 180° The swing doors are reinforced on the inside, lockable by slide handle with cylinder locks. Can easily be upgraded to other GARANT locking systems. The racking bays behind the swing doors can be fitted with pull-out shelves. The doors open 180° to allow the shelves to be extended freely. Colour: Frame RAL 7035 light grey, doors RAL 7016 anthracite powder-coated. 99 Application example Width Depth suitable for racking height mm 2000 2500 mm mm Usable depth 99 3321 91W 1350 mm (eShop) (eShop) 1020 80 Swing doors set Usable depth 99 3331 91W (eShop) (eShop) 1420 80 950 mm Height mm 2000 2500 ​ ​ 99 3321_2000 690
