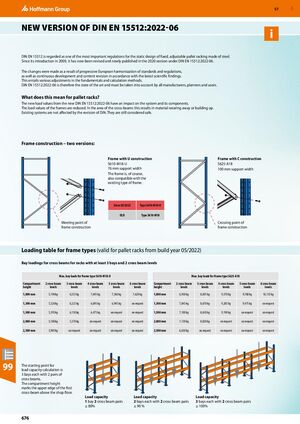

GBP 57 NEW VERSION OF DIN EN 15512:2022-06 DIN EN 15512 is regarded as one of the most important regulations for the static design of fixed, adjustable pallet racking made of steel. Since its introduction in 2009, it has now been revised and newly published in the 2020 version under DIN EN 15512:2022-06. The changes were made as a result of progressive European harmonization of standards and regulations, as well as continuous development and content revision in accordance with the latest scientific findings. This entails various adjustments in the fundamentals and calculation methods. DIN EN 15512:2022-06 is therefore the state of the art and must be taken into account by all manufacturers, planners and users. What does this mean for pallet racks? The new load values from the new DIN EN 15512:2022-06 have an impact on the system and its components. The load values of the frames are reduced. In the area of the cross-beams this results in material wearing away or building up. Existing systems are not affected by the revision of DIN. They are still considered safe. Frame construction – two versions: Frame with U construction Frame with C construction S610-M18-U S625-A18 76 mm support width 100 mm support width The frame is, of course, also compatible with the existing type of frame. Since 05/2022 Type S610-M18-U OLD Type S610-M18 Meeting point of Crossing point of frame construction frame construction Loading table for frame types (valid for pallet racks from build year 05/2022) Bay loadings for cross beams for racks with at least 3 bays and 2 cross beam levels Max. bay loads for frame type S610-M18-U Max. bay loads for frame type S625-A18 Compartment 2 cross beam 3 cross beam 4 cross beam 5 cross beam 6 cross beam Compartment 2 cross beam 3 cross beam 4 cross beam 5 cross beam 6 cross beam height levels levels levels levels levels height levels levels levels levels levels 1,000 mm 5,190 kg 6,555 kg 7,045 kg 7,360 kg 7,620 kg 1,000 mm 6,930 kg 8,695 kg 9,370 kg 9,780 kg 10,135 kg 1,300 mm 5,320 kg 6,325 kg 6,695 kg 6,945 kg on request 1,300 mm 7,045 kg 8,670 kg 9,285 kg 9,475 kg on request 1,500 mm 5,395 kg 6,150 kg 6,475 kg on request on request 1,500 mm 7,100 kg 8,630 kg 9,190 kg on request on request 2,000 mm 5,180 kg 5,370 kg on request on request on request 2,000 mm 7,130 kg 8,020 kg on request on request on request 2,500 mm 3,985 kg on request on request on request on request 2,500 mm 6,630 kg on request on request on request on request 99 The starting point for load capacity calculation is 3 bays each with 2 pairs of cross beams. The compartment height marks the upper edge of the first cross-beam above the shop floor. Load capacity Load capacity Load capacity 1 bay 2 cross beam pairs 2 bays each with 2 cross beam pairs 3 bays each with 2 cross beam pairs ≙ 80% ≙ 90 % ≙ 100% 676
