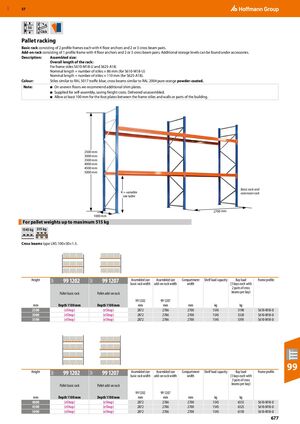

GBP 57 50 Click ​Pallet racking Basic rack consisting of 2 profile frames each with 4 floor anchors and 2 or 3 cross beam pairs. Add-on rack consisting of 1 profile frame with 4 floor anchors and 2 or 3 cross beam pairs. Additional storage levels can be found under accessories. Description: Assembled size: Overall length of the rack: For frame stiles S610-M18-U and S625-A18: Nominal length + number of stiles × 86 mm (for S610-M18-U) Nominal length + number of stiles × 110 mm (for S625-A18). Colour: Stiles similar to RAL 5017 traffic blue, cross beams similar to RAL 2004 pure orange powder-coated. Note: ■ On uneven floors we recommend additional shim plates. ■ Supplied for self-assembly, saving freight costs. Delivered unassembled. ■ Allow at least 100 mm for the foot plates between the frame stiles and walls or parts of the building. 2500 mm 3000 mm 3500 mm 4000 mm 4500 mm 5000 mm Basic rack and K = variable extension rack see table 2700 mm 1000 mm For pallet weights up to maximum 515 kg ​ 1545 kg 515 kg Cross beams type LNS 100×50×1.5. Height 99 1202 99 1207 Assembled size Assembled size Compartment Shelf load capacity Bay load Frame profile 96P 96P basic rack width add-on rack width width (3 bays each with 2 pairs of cross Pallet basic rack Pallet add-on rack beams per bay) 99 1202 99 1207 ​ ​ ​ mm Depth 1100 mm Depth 1100 mm mm mm mm kg kg ​ 2500 (eShop) (eShop) 2872 2786 2700 1545 5190 S610-M18-U 3000 (eShop) (eShop) 2872 2786 2700 1545 5320 S610-M18-U 3500 (eShop) (eShop) 2872 2786 2700 1545 5395 S610-M18-U Height 99 1202 99 1207 Assembled size Assembled size Compartment Shelf load capacity Bay load Frame profile 99 96P 96P basic rack width add-on rack width width (3 bays each with 3 pairs of cross Pallet basic rack Pallet add-on rack beams per bay) 99 1202 99 1207 ​ ​ ​ mm Depth 1100 mm Depth 1100 mm mm mm mm kg kg ​ 4000 (eShop) (eShop) 2872 2786 2700 1545 6555 S610-M18-U 4500 (eShop) (eShop) 2872 2786 2700 1545 6325 S610-M18-U 5000 (eShop) (eShop) 2872 2786 2700 1545 6150 S610-M18-U 677
