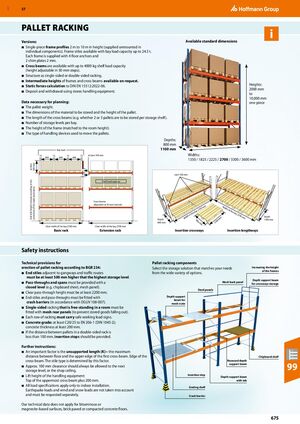

GBP 57 PALLET RACKING Versions: Available standard dimensions ■ Single-piece frame profiles 2 m to 10 m in height (supplied unmounted in individual components). Frame stiles available with bay load capacity up to 24.5 t. Each frame is supplied with 4 floor anchors and 2 shim plates 2 mm. ■ Cross beams are available with up to 4000 kg shelf load capacity (height adjustable in 50 mm steps). ■ Structure as single-sided or double-sided racking. ■ Intermediate heights of frames and cross beams available on request. ■ Static forces calculation to DIN EN 15512:2022-06. Heights: 2000 mm ■ Deposit and withdrawal using stores handling equipment. to 10,000 mm Data necessary for planning: one-piece ■ The pallet weight. ■ The dimensions of the material to be stored and the height of the pallet. ■ The length of the cross beams (e.g. whether 2 or 3 pallets are to be stored per storage shelf). ■ Number of storage levels per bay. ■ The height of the frame (matched to the room height). ■ The type of handling devices used to move the pallets. Depths: 800 mm Bay load 1100 mm 75 75 75 75 at least 100 mm Widths: 800 800 800 1350 / 1825 / 2225 / 2700 / 3300 / 3600 mm 500 mm at least each 100 mm End stile height increase according to the Shelf load capacity provisions of the trade association. Cross beams adjustable at 50 mm intervals m Wid 0m th 270 of t bay he b he ay 2 th of t 700 m Depth Wid mm m Depth 800 0 1100 mm 800 mm mm 120 Clear width of the bay 2700 mm Clear width of the bay 2700 mm Basic rack Extension rack Insertion crossways Insertion lengthways Safety instructions Technical provisions for Pallet racking components erection of pallet racking according to BGR 234: Select the storage solution that matches your needs Increasing the height of the frames ■ End stiles adjacent to gangways and traffic routes from the wide variety of options. must be at least 500 mm higher that the highest storage level. Depth support beam ■ Pass-throughs and spans must be provided with a Mesh back panel for crossways storage closed level (e.g. chipboard sheet, mesh panel). Steel panels ■ Clear pass-through height must be at least 2200 mm. ■ End stiles and pass-throughs must be fitted with Depth support beam for crash barriers (in accordance with DGUV 108-007). mesh crate ■ Single-sided racking that is free-standing in a room must be fitted with mesh rear panels (to prevent stored goods falling out). ■ Each row of racking must carry safe working load signs. ■ Concrete grade: at least C20/25 to EN 206-1 (DIN 1045-2); concrete thickness at least 200 mm. ■ If the distance between pallets in a double-sided rack is less than 100 mm, insertion stops should be provided. Further instructions: ■ An important factor is the unsupported length (K)= the maximum distance between floor and the upper edge of the first cross-beam. Edge of the Chipboard shelf cross-beam. The stile type is determined by this factor. Recessed depth ■ Approx. 100 mm clearance should always be allowed to the next storage level, or the shop ceiling. support beam 99 ■ Lift height of the handling equipment: Insertion stop Depth support beam Top of the uppermost cross beam plus 200 mm. with tab ■ All load specifications apply only to indoor installation. Grating shelf Earthquake loads and wind and snow loads are not taken into account and must be requested separately. Crash barrier Our technical data does not apply for bituminous or magnesite-based surfaces, brick paved or compacted concrete floors. 675
