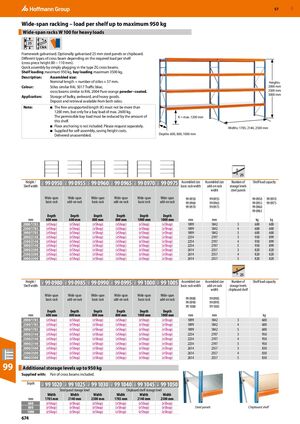

Производственная мебель и системы хранения Hoffmann Group 2026 - страница 674

GBP 57 ​Wide-span racking – load per shelf up to maximum 950 kg Wide-span racks W 100 for heavy loads ​ 25 Click Framework galvanised. Optionally galvanised 25 mm steel panels or chipboard. Different types of cross beam depending on the required load per shelf (cross piece height 80 − 110 mm). Quick assembly by simply plugging in the type ZG cross beams. Shelf loading maximum 950 kg, bay loading maximum 3500 kg. Description: Assembled size: Nominal length + number of stiles × 57 mm. Heights: Colour: Stiles similar RAL 5017 Traffic blue, 2000 mm cross beams similar to RAL 2004 Pure orange powder−coated. 2500 mm 3000 mm Application: Storage of bulky, awkward, and heavy goods. Deposit and retrieval available from both sides. Note: ■ The free unsupported length (K) must not be more than 1200 mm, but only for a bay load of max. 2600 kg. The permissible bay load must be reduced by the amount of K = max. 1200 mm this shelf. ■ Floor anchoring is not included. Please request separately. Widths: 1785, 2140, 2500 mm ■ Supplied for self-assembly, saving freight costs. Delivered unassembled. Depths: 600, 800, 1000 mm 25 Height / 99 0950 99 0955 99 0960 99 0965 99 0970 99 0975 basic Assembled size Assembled size Number of Shelf load capacity 96O 96O 96O 96O 96O 96O Shelf width rack width add-on rack storage levels width steel panels Wide-span Wide-span Wide-span Wide-span Wide-span Wide-span 99 0950 99 0955 99 0950 99 0970 basic rack add-on rack basic rack add-on rack basic rack add-on rack 99 0960 99 0965 99 0955 99 0975 99 0970 99 0975 99 0960 99 0965 Depth Depth Depth Depth Depth Depth mm 600 mm 600 mm 800 mm 800 mm 1000 mm 1000 mm mm mm ​ kg kg 2000/1785 (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) 1899 1842 3 600 600 2500/1785 (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) 1899 1842 4 600 600 3000/1785 (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) 1899 1842 5 600 600 2000/2140 (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) 2254 2197 3 950 899 2500/2140 (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) 2254 2197 4 950 899 3000/2140 (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) 2254 2197 5 950 899 2000/2500 (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) 2614 2557 3 820 820 2500/2500 (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) 2614 2557 4 820 820 3000/2500 (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) 2614 2557 5 820 820 25 Height / 99 0980 99 0985 99 0990 99 0995 99 1000 99 1005 basic Assembled size Assembled size Number of Shelf load capacity 96O 96O 96O 96O 96O 96O Shelf width rack width add-on rack storage levels width chipboard shelf Wide-span Wide-span Wide-span Wide-span Wide-span Wide-span basic rack add-on rack basic rack add-on rack basic rack add-on rack 99 0980 99 0985 ​ 99 0990 99 0995 99 1000 99 1005 Depth Depth Depth Depth Depth Depth mm 600 mm 600 mm 800 mm 800 mm 1000 mm 1000 mm mm mm ​ kg 2000/1785 (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) 1899 1842 3 600 2500/1785 (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) 1899 1842 4 600 3000/1785 (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) 1899 1842 5 600 2000/2140 (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) 2254 2197 3 950 2500/2140 (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) 2254 2197 4 950 3000/2140 (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) 2254 2197 5 950 2000/2500 (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) 2614 2557 3 830 2500/2500 (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) 2614 2557 4 830 3000/2500 (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) 2614 2557 5 830 99 Additional storage levels up to 950 kg ​ Supplied with: Pair of cross beams included. Depth 99 1020 99 1025 99 1030 99 1040 99 1045 99 1050 96O 96O 96O 96O 96O 96O Steel panel storage level Chipboard shelf storage level Width Width Width Width Width Width mm 1785 mm 2140 mm 2500 mm 1785 mm 2140 mm 2500 mm 600 (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) 800 (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) Steel panels Chipboard shelf 1000 (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) 674
