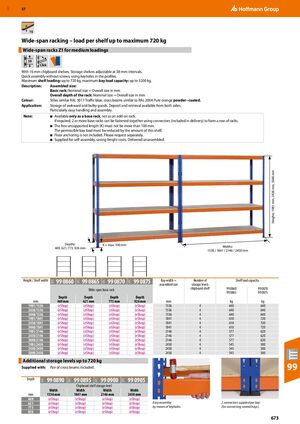

GBP 57 16 ​Wide-span racking – load per shelf up to maximum 720 kg Wide-span racks Z1 for medium loadings ​ 38 Click With 16 mm chipboard shelves. Storage shelves adjustable at 38-mm intervals. Quick assembly without screws, using keyholes in the profiles. Maximum shelf loading: up to 720 kg, maximum bay load capacity: up to 3200 kg. Description: Assembled size: Basic rack: Nominal size = Overall size in mm Overall depth of the rack: Nominal size = Overall size in mm Colour: Stiles similar RAL 5017 Traffic blue, cross beams similar to RAL 2004 Pure orange powder−coated. Application: Storage of awkward and bulky goods. Deposit and retrieval available from both sides. Particularly easy handling and assembly. Note: ■ Available only as a base rack, not as an add-on rack. If required, 2 or more base racks can be fastened together using connectors (included in delivery) to form a row of racks. ■ The free unsupported length (K) must not be more than 100 mm. The permissible bay load must be reduced by the amount of this shelf. ■ Floor anchoring is not included. Please request separately. ■ Supplied for self-assembly, saving freight costs. Delivered unassembled. Heights: 1981 mm, 2438 mm, 3048 mm Depths: K = max. 100 mm 469, 621, 773, 926 mm Widths: 1536 / 1841 / 2146 / 2450 mm Height / Shelf width 99 0860 99 0865 99 0870 99 0875 Bay width = Number of Shelf load capacity 97C 97C 97C 97C assembled size storage levels Wide-span basic rack chipboard shelf 99 0860 99 0870 99 0865 99 0875 Depth Depth Depth Depth mm 469 mm 621 mm 773 mm 926 mm mm ​ kg kg 1981/1536 (eShop) (eShop) (eShop) (eShop) 1536 4 640 640 2438/1536 (eShop) (eShop) (eShop) (eShop) 1536 4 640 640 3048/1536 (eShop) (eShop) (eShop) (eShop) 1536 4 640 640 1981/1841 (eShop) (eShop) (eShop) (eShop) 1841 4 610 720 2438/1841 (eShop) (eShop) (eShop) (eShop) 1841 4 610 720 3048/1841 (eShop) (eShop) (eShop) (eShop) 1841 4 610 720 1981/2146 (eShop) (eShop) (eShop) (eShop) 2146 4 577 620 2438/2146 (eShop) (eShop) (eShop) (eShop) 2146 4 577 620 3048/2146 (eShop) (eShop) (eShop) (eShop) 2146 4 577 620 1981/2450 (eShop) (eShop) (eShop) (eShop) 2450 4 545 500 2438/2450 (eShop) (eShop) (eShop) (eShop) 2450 4 545 500 3048/2450 (eShop) (eShop) (eShop) (eShop) 2450 4 545 500 Additional storage levels up to 720 kg ​ Supplied with: Pair of cross beams included. 99 Depth 99 0890 99 0895 99 0900 99 0905 97C 97C 97C 97C Chipboard shelf storage level Width Width Width Width mm 1536 mm 1841 mm 2146 mm 2450 mm 469 (eShop) (eShop) (eShop) (eShop) 621 (eShop) (eShop) (eShop) (eShop) Easy assembly 2 connectors supplied per bay 773 (eShop) (eShop) (eShop) (eShop) by means of keyholes. (for connecting several bays). 926 (eShop) (eShop) (eShop) (eShop) 673
