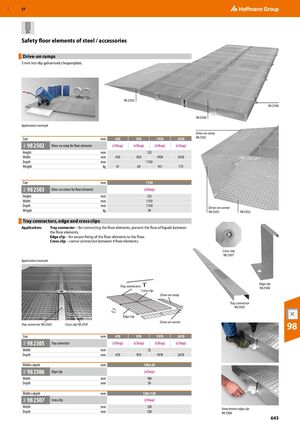

GBP 57 Zn ​Safety floor elements of steel / accessories Drive-on ramps ​ 3 mm hot-dip galvanised chequerplate. 98 2502 98 2506 98 2500 Application example Drive-on ramp Size mm 450 950 1950 2450 98 2502 98 2502 96U Drive-on ramp for floor elements (eShop) (eShop) (eShop) (eShop) Height mm 123 Width mm 450 950 1950 2450 Depth mm 1150 Weight kg 41 69 141 175 Size mm 1150 98 2503 96U Drive-on corner for floor elements (eShop) Height mm 123 Width mm 1150 Depth mm 1150 Drive-on corner Weight kg 39 98 2503 98 2502 Tray connectors, edge and cross clips ​ Application: Tray connector – for connecting the floor elements, prevent the flow of liquids between the floor elements. Edge clip – for secure fixing of the floor elements to the floor. Cross clip – corner connection between 4 floor elements. Cross clip 98 2507 Application example Edge clip Tray connectors 98 2506 Cross clip Drive-on ramp Tray connector 98 2505 Edge clip Drive-on corner Tray connector 98 2505 Cross clip 98 2507 98 Size mm 470 970 1970 2470 98 2505 96U Tray connector (eShop) (eShop) (eShop) (eShop) Width mm 52 Depth mm 470 970 1970 2470 Width×depth mm 100×30 98 2506 96U Edge clip (eShop) Width mm 100 Depth mm 30 Width×depth mm 120×120 98 2507 96U Cross clip (eShop) Width mm 120 Attachment edge clip Depth mm 120 98 2506 643
